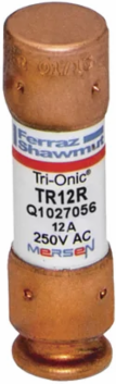

Mersen TR12R Fuse Tri-Onic® 250V 12A Time-Delay Class RK5 - 2 Inch, 200 kA Breaking Capacity, AC & DC Rated
- MPN: TR12R
- UPC: 782001747817
- PPN: FER-TR12R
CAD
$5.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Features
- Engineered with advanced dual-element time-delay characteristics, this 12-Amp fuse safely rides out harmless transient inrush currents and transformer spikes. This precise time-lag window completely eliminates expensive nuisance opening under temporary surge conditions while remaining ready to isolate sustained, destructive overloads.
- Boasting highly efficient current-limiting performance, the TR12R strictly restricts peak let-through current during a major electrical fault. By physically choking off destructive fault energy before it can damage downstream branch circuits, feeders, or control panels, it significantly improves the Short Circuit Current Rating (SCCR) of your overall facility layout.
- Featuring a massive 200,000-Amp AC interrupting rating at 250V (and 20,000 Amps at 160V DC), this robust cartridge safely extinguishes intense arcing energy without rupturing. Filled with a premium high-grade silica medium for rapid arc quenching, it ensures your electrical panels remain physically protected against severe line-to-line short circuits.
- Built with the standard Class RK5 rejection-style footprint (9/16 in diameter by 2 in length), this ferrule-terminal cartridge prevents dangerous replacement errors when paired with an RK5-compatible fuse block. This mechanical barrier ensures a lower-rated or non-current-limiting Class H or K fuse cannot accidentally be dropped into the circuit, maintaining strict facility code compliance.
Documentation & Downloads
Specifications
Additional
- Amperage
- 12 A
- Breaking Capacity
- 200 kA AC
- Time Delay Class
- Class RK5
- Length
- 2 in
- Connection Type
- Ferrule
- Mounting
- Clip
- ROHS Compliant
- Yes
Voltage250 V AC, 160 V DC
Breaking Capacity DC20 kA
Frequency50/60 Hz
Weight0.037 lb
Connection MaterialCopper
MaterialPolyTube body, fiberglass with high-grade silica filler
