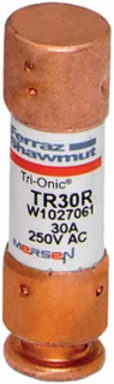

Mersen TR30R Fuse Tri-Onic 250V 30A Time-Delay Class RK5, 0.56 Inch Diameter, 2 Inch Length
- MPN: TR30R
- UPC: 782001747862
- PPN: FER-TR30R
CAD
$4.59
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Features
- The Mersen TR30R is a 30-Amp, 250V AC Class RK5 dual-element fuse. It is a time-delay, current-limiting fuse designed to provide high-performance protection for both service entrance equipment and individual motor branch circuits.
- This fuse features a "dual-element" design that can handle the high inrush current (startup surge) of motors and transformers without blowing. It provides a minimum 10-second time-delay at 500% of the rated current, which eliminates "nuisance trips" during equipment startup while still providing fast-acting protection against short circuits.
- The TR30R has a massive 200,000 Amp Interrupting Rating (AIC). This ensures that the fuse can safely clear extremely high-energy short circuits without exploding or failing, protecting your facility s electrical infrastructure and ensuring personnel safety.
- As a current-limiting fuse, the TR30R reacts so quickly to a fault that it physically prevents the short-circuit current from reaching its maximum destructive peak. This reduces the thermal and magnetic stress on your cables, contactors, and breakers, significantly decreasing the risk of equipment damage.
Documentation & Downloads
Specifications
Additional
| Voltage | 250 V AC / 160 V DC |
|---|---|
| Interrupting Rating AC | 200 kA |
| Fuse Class | Class RK5 |
| Fuse Type | Current-limiting |
| Length | 2 in |
| Weight | 0.037 lb |
| Connection Type | Ferrule |
| Material | PolyTube body, Fiberglass insulation |
| Approvals | UL Listed to 248-12, CSA Certified to C22.2 No. 248.12 |
| Amperage | 30 A |
|---|---|
| Interrupting Rating DC | 20 kA (250 V) |
| Time Delay | Yes |
| Frequency | 50/60 Hz |
| Diameter | 0.56 in |
| Mounting | Clip |
| Connection Material | Copper |
| RoHS Compliant | Yes |
