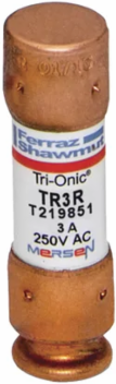

Mersen TR3R Fuse Tri-Onic® 250V 3A Class RK5 Time-Delay for Motors & Transformers
- MPN: TR3R
- UPC: 782001747688
- PPN: FER-TR3R
CAD
$5.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
Features
- Engineered with advanced dual-element time-delay technology, the TR3R safely handles harmless temporary inrush currents and transformer spikes. This prevents "nuisance tripping" during equipment startup, ensuring your critical motors and branch circuits stay online while still providing 3-amp precision protection against sustained overloads.
- As a current-limiting Class RK5 device, this fuse rapidly interrupts electrical faults before they reach their full destructive peak. By significantly lowering the "peak let-thru" current, it protects sensitive downstream components from thermal and magnetic stress, effectively hardening your industrial control panels against catastrophic failure.
- The TR3R features a specialized rejection-style ferrule design that, when used with appropriate RK5 fuse blocks, physically prevents the installation of a lower-rated or non-current-limiting fuse. This fail-safe mechanical feature eliminates human error during rapid repairs, maintaining the original safety and coordination of your electrical distribution system.
- With a massive 200kA interrupting rating at 250VAC, the TR3R is designed to safely quench high-energy arcs in the most demanding service entrance and feeder environments. This industrial-grade capacity ensures the fuse body remains intact during a major fault, protecting personnel and surrounding hardware from explosive failure.
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 V AC, 160 V DC
- Interrupting Rating
- 200 kA AC, 20 kA DC
- Fuse Type
- Current-Limiting
- Length
- 2 in
- Mounting
- Clip
- Connection/Terminal Type
- Ferrule
- Fuse Body Material
- Fiberglass
- AC or DC
- AC/DC
Amperage3 A
Fuse ClassRK5
Speed/CharacteristicTime Delay
Weight0.037 lb
Connection/Terminal MaterialCopper
Body/Insulating MaterialPolyTube
Frequency50/60 Hz
ROHS CompliantYes
