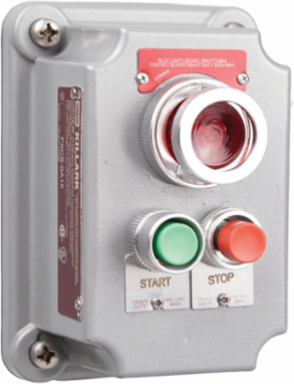

Killark FXCS-0A15 SEAL-X Momentary Control Station with 2 Mini Push Buttons & Pilot Light, 6.63 Inch
- MPN: FXCS-0A15
- UPC: 783936200422
- PPN: HBL-FXCS-0A15
- UNSPSC: 39122216
CAD
$1269.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
FXCS Momentary Contact, 2 Mini Push Button, 1 Pilot Light
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 6.63 in x 6 in x 4.38 in |
| Height | 4.38 in |
| Action | Momentary |
| Amperage Rating | 10 A |
| Color | Green-Red P.B., Red Light |
| Size | 6.63 in x 6 in x 4.38 in |
| Type | Aluminum Factory Sealed Cover With Pilot Light And Two Mini Push Buttons |
| Width | 6 in |
| Nema Rating | 3 |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | FXCS MOM CONT 2 MINI PB, 1 PL |
| Harmonization Code | 8536509035 |
| Lead Time | 15 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D25D250 |
| CSA File Number | LR11714, LR11712 |
| Gross Weight with Packaging | 2.99 |
| Material | Copper-free aluminum |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 14.950 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| NAICS Code | 3353146142 |
| Back Box Type | FXB |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Length | 6.63 in |
| Actuator | Double Pushbutton and Pilot Light |
| Application | SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings |
| Number of Poles | 2 |
| Special Features | Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified. |
| Weight | 2.99 lb. |
| Frequency Rating | 50/60 Hz |
| Number Of Poles | 2 |
| Class Code | D25 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Factory Sealed | Factory Sealed |
| UL File Number | E53360, E12379 |
| Series | FXCS Series |
| BOX SIZE | 5.250x6.750x6.375 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936200422 |
| Master Pack Description | Each |
