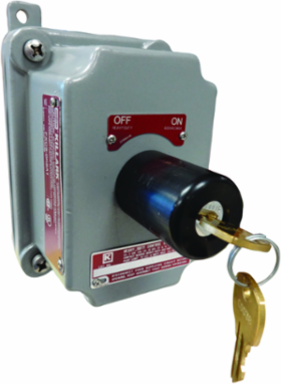

Killark FXCS-2K3C4 Aluminum Dead-End Selector Switch 3 Position Keyed 3/4 Inch Hub, 1NO/1NC, NEMA 3
Killark FXCS-2K3C4 Aluminum Dead-End Selector Switch 3 Position Keyed 3/4 Inch Hub, 1NO/1NC, NEMA 3
- MPN: FXCS-2K3C4
- UPC: 783936201344
- PPN: HBL-FXCS-2K3C4
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1318.71/ EA
Description
FXCS Series - Aluminum Dead-End 3-Position Maintained Contact Keyed Selector Switch - Factory Sealed - 3/4" Hub - 1NO/1NC Contact Rating
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- FXB
- Depth
- 6.06
- Each - Width
- 6.000 in
- Height
- 4.38 in
- Length
- 6.63 in
- Actuator
- 3 Position Key Selector Switch
- Application
- SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Size
- 6.63 in x 6 in x 4.38 in
- Type
- Factory Sealed
- Frequency Rating
- 50/60 Hz
- Number Of Poles
- 1
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714, LR11712
- Gross Weight with Packaging
- 4.6
- UL File Number
- E53360, E12379
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Country of OriginUS
Dimensions6.63 in x 6 in x 4.38 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size3/4"
ActionMaintained
Amperage Rating10 A
ColorBlack
Number of Poles1
Special FeaturesKillark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Width6 in
Nema Rating3
ARRA CompliantContact Manufacturer
Description - InvoiceBOX CVR 3POS KEYED 3/4"DEAD
Harmonization Code8536509025
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D250
Factory SealedFactory Sealed
Hub PatternDead-End
SeriesFXCS Series
Carton - SCC-14 Next Lower Level Sub Pack00783936201344
Certifications
- EU RoHS Indicator
- Contact Manufacturer
