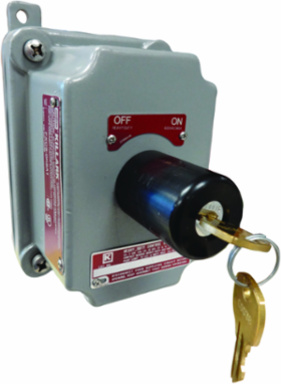

Killark FXCS-2K2A5 Aluminum Keyed Selector Switch Cover - 3/4 Inch Hub Size, 2NO/2NC Contacts
Killark FXCS-2K2A5 Aluminum Keyed Selector Switch Cover - 3/4 Inch Hub Size, 2NO/2NC Contacts
- MPN: FXCS-2K2A5
- UPC: 783936201320
- PPN: HBL-FXCS-2K2A5
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1398.58/ EA
Description
FXCS Series - Aluminum Dead-End Maintained Contact 2-Position Keyed Selector Switch Cover With Device - Factory Sealed - Hub Size 3/4" - 2NO/2NC Contact
Features
- Eliminates external sealing requirements.
- Lower installation cost.
- NEMA 3 weatherproof.
- Color coded wiring with more wiring space for easier field installation.
- Stainless steel captive screws for cover assembly.
- Lockout accessory available must be factory installed.
- Ground boss for grounding in the splice box.
- Device bodies and covers are copper-free cast aluminum alloy.
- Push button, selector switches and pilot light bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- FXB
- Depth
- 6.06
- Each - Width
- 6.000 in
- Height
- 4.38 in
- Length
- 6.63 in
- Actuator
- 2 Position Key Selector Switch
- Application
- SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings
- Mounting
- Bi-Directional Ductile Mounting Lugs
- Size
- 6.63 in x 6 in x 4.38 in
- Type
- Factory Sealed
- Frequency Rating
- 50/60 Hz
- Nema Rating
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- BOX CVR 2POS KEYED 3/4"DEAD
- Harmonization Code
- 8536509025
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Factory Sealed
- Factory Sealed
- Hub Pattern
- Dead-End
- Series
- FXCS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936201320
Country of OriginUS
Dimensions6.63 in x 6 in x 4.38 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size3/4"
ActionMaintained
Amperage Rating10 A
ColorBlack
Number of Poles1
Special FeaturesKillark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
Width6 in
Mounting TypeBi-Directional Ductile Mounting Lugs
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714, LR11712
Gross Weight with Packaging4.6
UL File NumberE53360, E12379
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
