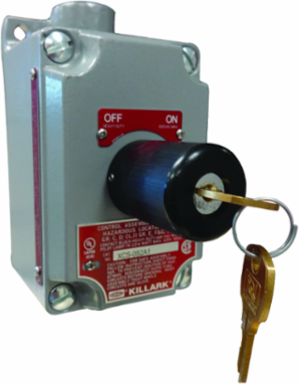

Killark XCS-5K2A1 Aluminum Selector Switch - 2 Position Keyed, 3/4 Inch Hub Size, 10A Amperage
Killark XCS-5K2A1 Aluminum Selector Switch - 2 Position Keyed, 3/4 Inch Hub Size, 10A Amperage
- MPN: XCS-5K2A1
- UPC: 783936892009
- PPN: HBL-XCS-5K2A1
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1048.52/ EA
Description
XCS Series - Aluminum Feed-Thru Maintainted Contact 2-Position Keyed Selector Switch - 1NO/1NC Contact Rating - Hub Size 3/4 Inch
Features
- Copper free cast aluminum alloy.
- Ground flange joint between bolted cover and box provide required flame path.
- Push button, selector switches and pilot light operator bodies are copper-free aluminum.
- Operating shaft in both push buttons and selector switches are stainless steel.
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
Specifications
Specifications
- Back Box Type
- SWB
- Depth
- 5-1/32
- Each - Width
- 3.000 in
- Hub Size
- 3/4"
- Actuator
- 2 Position Key Selector Switch
- Application
- Hazardous locations due to the presence of flammable gases or vapors, combustible dusts, or easily ignitable fiber or flyings. Installations at petroleum refineries, chemical and petrochemical plants, and other processing or storage facilities where simil
- Contact Rating
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Special Features
- Killark XCS SERIES CONTROL STATION Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.
- Frequency Rating
- 50/60 Hz
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CLI XCS-0K2A1 CV W/3/4"F-THRU(
- Harmonization Code
- 8536509025
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 2.9
- Series
- XCS Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936892009
Country of OriginUS
Width3.000 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
ActionMaintained
Amperage Rating10 A
ColorBlack
Number of Poles1
TypeAluminum Box And Cover With 2-Position Key Selector Switch
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE53360
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
