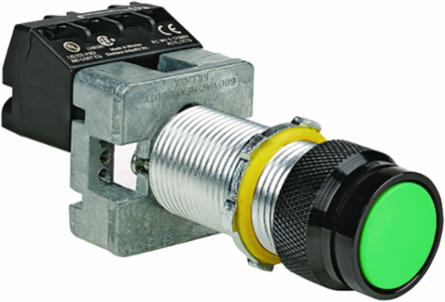

Killark GOL1G3 G Series Aluminum Momentary Push Button Operator, 6.31 Inch x 2.25 Inch x 1.25 Inch, 10A Rated
Killark GOL1G3 G Series Aluminum Momentary Push Button Operator, 6.31 Inch x 2.25 Inch x 1.25 Inch, 10A Rated
- MPN: GOL1G3
- UPC: 783936226040
- PPN: HBL-GOL1G3
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$668.45/ EA
Description
Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified.
Features
- Operators are all aluminum except for certain movable parts which are stainless steel.
- All other parts such as screws are either stainless steel or plated steel.
- Threaded bodies are all 3/4”-14 NPSM thread.
- Control stations can be grouped into a single assembly thus reducing installation time and cost.
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Length
- 6.31 in
- Actuator
- Single Pushbutton
- Application
- G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.
- Number of Poles
- 1
- Special Features
- Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified
- Width
- 2.25 in
- Nema Rating
- 3, 4, 4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- MOM PUSHBUTTON EXTENDED GRN 1NO/1NC
- Harmonization Code
- 8536509035
- Lead Time
- 20 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D25D250
- Gross Weight with Packaging
- 0.5
- Series
- GO Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936226040
Dimensions6.31 in x 2.25 in x 1.25 in
Height1.25 in
ActionMomentary
Amperage Rating10 A
Contact Rating60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
Size6.31 in x 2.25 in x 1.25 in
TypePush Button
Frequency Rating50/60 Hz
Number Of Poles1
Class CodeD25
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11714
UL File NumberE12379
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
