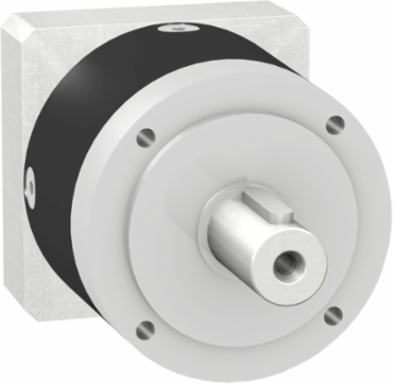

Schneider Electric GBX1600151403F Gearbox with Straight Teeth, 160 mm, Reduction 15:1, 700 N.m, IP54
Schneider Electric GBX1600151403F Gearbox with Straight Teeth, 160 mm, Reduction 15:1, 700 N.m, IP54
- MPN: GBX1600151403F
- PPN: SCH-GBX1600151403F
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The GBX1600151403F Gearbox from Schneider Electric stands out in the realm of motion control with its innovative design featuring straight teeth, which enhances efficiency and performance. Offering a reduction ratio of 15:1, this gearbox is engineered to handle a maximum torque of 700 N.m, making it ideal for demanding industrial applications that require reliable motion control. With an IP54 rating, it ensures protection against dust and water splashes, further solidifying its resilience in various environments. This robust gearbox is an essential component for automating processes, ensuring smooth and precise operation in servo motor applications.
Specifications
- Product Or Component Type
- Planetary gearbox
- Continuous Output Torque
- 700 N.m at 100 rpm, 30 °C
- Maximum Radial Force
- 4200 N (30000 hours), 6000 N (10000 hours) at 100 rpm, 30 °C
- Maximum Torsional Backlash
- 10 arc.min
- Service Life
- 30000 hours at 100 rpm, 30 °C
- Gearbox External Diameter
- 160 mm (6.30 in)
- Moment of Inertia
- 12.35 g.cm²
- Housing Material
- Black anodized aluminium
- Shaft Material
- C 45
- Lubrication
- Lubricated for life
- Product Compatibility
- SH3, MH3, ILM
- Warranty
- 18 months
- EU RoHS Directive
- Pro-active compliance, product out of EU RoHS scope
- Environmental Disclosure
- ENVPEP111245EN
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Mercury Free
- Yes
- Country of Origin
- Germany
Reduction Ratio15:1
Maximum Output Torque1120 N.m at 100 rpm, 30 °C
Maximum Axial Force6000 N (30000 hours), 8000 N (10000 hours) at 100 rpm, 30 °C
Torsional Rigidity41 N.m/arcmin
Efficiency94%
Noise Level70 dB at 1 m, no-load
Mounting PositionAny position
Housing ColourBlack
Gear Box Teeth TypeStraight teeth
Ambient Operating Temperature-25 to 90 °C (-13 to 194 °F)
Range CompatibilityLexium 32, Lexium 62, Lexium 52, Lexium 15, Lexium 62 ILM
China RoHS RegulationNot applicable
RoHS ExemptionYes
Sustainable Offer StatusGreen Premium product
PVC FreeYes
Device Short NameGBX
