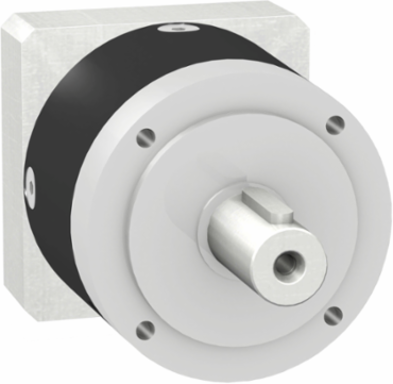

Schneider Electric GBX1600161403F Gearbox 160 mm, Reduction 16:1, Torque 800 N.m, Backlash < 10 arcmin
- MPN: GBX1600161403F
- PPN: SCH-GBX1600161403F
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for precision and reliability, the GBX1600161403F Gearbox from Schneider Electric is an essential component for advanced motion control applications. With a reduction ratio of 16:1, this gearbox efficiently translates high-speed input into a controlled output, making it ideal for tasks that require both accuracy and power. Capable of delivering a robust torque of 800 N.m, it ensures dependable performance, while the minimal backlash of less than 10 arcminutes contributes to enhanced positional accuracy. As part of Schneider Electric's commitment to innovation in automation and control, this gearbox is well-suited for servo motors, providing a durable and efficient solution for complex industrial systems.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Germany, France |
|---|
Physical Attributes
| Housing Color | black |
|---|
Complementary Attributes
| Minimum Operational Altitude | -25.0 m, -25.0 m |
|---|---|
| Maximum Operational Altitude | 90.0 m |
| Maximum Permitted Torque | 1400.0 N.m |
| Maximum Revolution Speed | 6500.0 rpm |
| Maximum Axial Force Fa | 6000 N 100 rpm, during 30000 hour at 30°C8000 N 100 rpm, during 10000 hour at 30°C |
|---|---|
| Maximum Output Torque | 1280 N.m 100 rpm 30 °C |
| Maximum Radial Force Fr | 4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C |
| Maximum Torsional Backlash | 10 arc.min |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Minimum Operational Altitude | -25.0 m, -25.0 m |
| Carbon Footprint Of The Distribution Phase [A4] | 2.9675287356, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0582179239, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 734 kg CO2 eq., 3733.9111111111 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1901 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 4 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Continuous Stall Torque | 700.0 N.m |
| Efficiency | 95 % |
| Gearbox External Diameter | 160 mm |
| Maximum Operational Altitude | 90.0 m |
| Maximum Revolution Speed | 6500.0 rpm |
| Noise Level | 70 dB 1 m, no-load |
| Peak Stall Torque | 1120.0 N.m |
| Product Or Component Type | planetary gearbox |
| Returnability | No |
| Shaft Material | C 45 |
| Software Version | EIME v5.8.1 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 3 832 kg CO2 eq. |
| Pep Code | ENVPEP111245EN |
| Pep Verification Date | 2020-07-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The gearbox allows optimizing the load inertia of the machine process which is driven by the servo motor. The gearbox is converting the torque supplied by the motor to control the movement of the moving load of the machine process during 10 years and a 50% use rate at 108 W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 7621.2 |
| Energy Model - Installation [A5] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 42383.5 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 9483 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Reduction Ratio Per Size | 8:1, 12:1, 15:1, 16:1, 20:1, 25:1, 32:1, 40:1 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 2 kg CO2 eq., 2.0552119253 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 93 kg CO2 eq., 92.7270114943 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 4 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| Compatibility Code | GBX |
| Device Short Name | GBX |
| Gear Box Type | straight teeth |
| Housing Material | black anodized aluminium |
| Maximum Permitted Torque | 1400.0 N.m |
| Mounting Position | any position |
| Nominal Speed | 1450 rpm |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Reduction Ratio | 20:1 |
| Service Life In Hours | 30000 h 100 rpm 30 °C |
| Shaft Moment Of Inertia | 9.913 kg.cm² |
| Static Torque | 1.3 N.m |
| Torsional Rigidity | 41 N.m/arcmin |
| Housing Color | black |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Germany |
| Energy Model - Use [B6] | Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27 |
| Length Total | 153.5 mm |
| Package Weight(Lbs) | 23.0 kg |
| Warranty (In Months) | 18 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 9483 |
| Customs Code | 8483405010 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Product Compatibility | SH3, MH3, ILM |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 3831.7190811901 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2020-07-01 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Operation | -25-90 °C, -25-90 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111245EN |
| Ip Degree Of Protection | shaft output IP54 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP111245EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
General Attributes
| Product Or Component Type | planetary gearbox |
|---|
ETIM
| ETIM 8 | EC002584 |
|---|
| ETIM 9 | EC002584 |
|---|
Output Attributes
| Continuous Output Torque | 800 N.m 100 rpm 30 °C |
|---|
| Maximum Output Torque | 1280 N.m 100 rpm 30 °C |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Efficiency | 95 % |
|---|
Batteries & Runtime Attributes
| Additional Information | lubricated for life |
|---|
