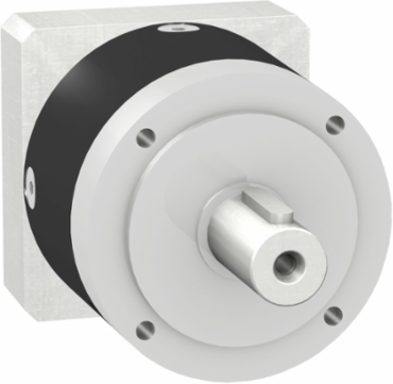

Schneider Electric GBX1600401003F gearbox with straight teeth GBX- Ø 160 mm- reduction 40:1- < 10arcmin- 700 N.m
Schneider Electric GBX1600401003F gearbox with straight teeth GBX- Ø 160 mm- reduction 40:1- < 10arcmin- 700 N.m
- MPN: GBX1600401003F
- PPN: SCH-GBX1600401003F
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
gearbox with straight teeth GBX- Ø 160 mm- reduction 40:1- < 10arcmin- 700 N.m
Specifications
Environment
- Noise Level
- 70 dB 1 m, no-load
- Ip Degree Of Protection
- shaft output IP54
Ambient Air Temperature For Operation-25-90 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111245EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Housing Colour
- black
- Torsional Rigidity
- 41 N.m/arcmin
- Service Life In Hours
- 30000 h 100 rpm 30 °C
- Housing Material
- black anodized aluminium
- Continuous Output Torque
- 700 N.m 100 rpm 30 °C
- Shaft Moment Of Inertia
- 5.28 g.cm²
- Shaft Material
- C 45
- Maximum Output Torque
- 1120 N.m 100 rpm 30 °C
Maximum Torsional Backlash10 arc.min
Maximum Radial Force Fr4200 N 100 rpm, force applied at mid-distance from output shaft during 30000 hour at 30 °C || 6000 N 100 rpm, force applied at mid-distance from output shaft during 10000 hour at 30 °C
Additional Informationlubricated for life
Efficiency94 %
Mounting Positionany position
Net Weight22 kg
Maximum Axial Force Fa6000 N 100 rpm, during 30000 hour at 30°C || 8000 N 100 rpm, during 10000 hour at 30°C
Specifications
- Gear Box Type
- straight teeth
- Gearbox External Diameter
- 160 mm
- Product Or Component Type
- planetary gearbox
- Product Compatibility
- BSH 100 mm, 3 || BMH 100 mm, 3 || BMI 100 mm, 3 || SH3 || MH3 || ILM
Reduction Ratio40:1
Range CompatibilityLexium 32i || Lexium 32 || Lexium 52 || Lexium 62 ILM || Lexium 62 || Lexium 15
Device Short NameGBX
