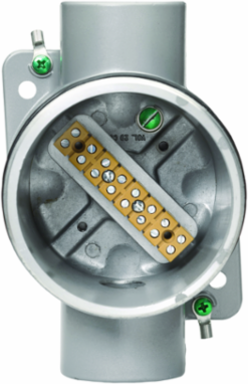

Killark GEBC-3-6TBMK-EX Terminal Box, 3-1/2 Inch Round Body, 1 Inch NPT Hubs, IP66, Aluminum
- MPN: GEBC-3-6TBMK-EX
- UPC: 783936083933
- PPN: HBL-GEBC-3-6TBMK-EX
CAD
$1233.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
GEB-TB-EX 3-1/2 Id Rd Body, "C" 1" NPT Hubs ,Qty 6, 6mm2 #10 AWG Panel Mount, UL/CSA/ATEX/IECEx, Class I Div. 1 EX D, Type 4 IP66, Terminal Box
Features
- Cover o-ring supplied as standard for Type 4X and IP66 applications.
- Available in 4 configurations C, L, T & X with either 1/2” to 1-1/2” NPT taper threaded hubs providing ground continuity.
- Smooth intregral hub bushing to protect conductor insulation when pulling.
- Also available in M20 through M50 metric sizes.
- External cover threads on the body protecting conductors from damages during pulling.
- No pinching of conductors during cover installation.
- Two terminal block manufacturers to choose from Weidmuller and ABB.
- Three options of terminal blocks to select from.
- One Internal and two external grounding (earthing) screws.
- Lugs on cover permits for easy removal and tightening.
- Box and cover are made of copper free aluminum.
- Electrostatically applied gray powder coating.
- Cover o-ring gasket material, Nitrile.
- Stainless steel tamper-proof locking set screw in cover.
- Small compact, 3-1/2 Dia. round body enclosure with threaded cover. The GEB-TB-EX series is for use in locations that are hazardous, corrosive, wet, hose down, dust, dirty, under both sever hot and cold ambient conditions. They are UL / CSA certified for Class I Groups BCD, Class I Zone 1 & 2 IIB+H2, Class II Groups EFG, Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex d IIB+H2 Ex tb IIIC T6…T3 IP66. Available in 4 hub configurations, C, L, T & X with either ½” NPT through 1-1/2” NPT conduit openings or M20 through M50 gland openings. The GEB-TB-EX are made of cast copper-free aluminum (less than 4/10 of 1%), supplied standard with a Nitrile (BUNA-N) O-Ring, internal external ground (earth) screws, stainless steel tamper proof locking set screw and electrostatically applied grey powder paint. Choice of panel or din rail mounted screw clamp terminals.
Specifications
Key Specifications
- Country of Origin
- Hungary
- Cover Type
- Threaded
- Type
- Terminal Box
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D25D252
- UL File Number
- E83696
- Series
- GEB Terminal Boxes Series
- BOX SIZE
- (in)
- NAICS Code
- 3359326103
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Nema Rating3, 4, 4X
ARRA CompliantContact Manufacturer
Description - InvoiceGEB MK6/6 TERM 1" C TYPE ATEX IECEX
Harmonization Code8536904000
MSDS FlagNo
CSA File NumberLR11716
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936083933
