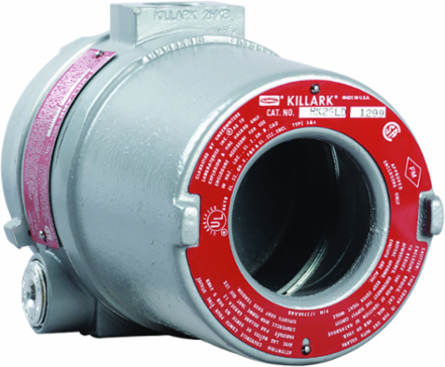

Killark 2HKB-B-B HK Series 3-1/2 Inch Internal Diameter Round Body Instrument Enclosure, Explosion Proof, Cast Aluminum
Killark 2HKB-B-B HK Series 3-1/2 Inch Internal Diameter Round Body Instrument Enclosure, Explosion Proof, Cast Aluminum
- MPN: 2HKB-B-B
- UPC: 783936295473
- PPN: HBL-2HKB-B-B
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$708.78/ EA
Description
HK Series, 3-1/2" Internal Diameter Round Body Double Port, 2 Flat Cover, Class I, II, III, BCDEFG, UL/CSA/FM, Cast Aluminum, Type 4, Instrument Enclosure
Features
- Compact round body instrument enclosure, double cover design.
- The enclosure has two separate chambers for isolation between power and instrument, with threaded screw covers to provide easy access to interior.
- High strength, lighter weight, corrosion resistant copper free cast aluminum construction.
- Cover o-ring, Nitrile (BUNA-N) material, supplied standard for a Type 4X rating.
- Cast mounting lugs are standard on all boxes.
- Internal ground screw supplied on all boxes.
- Electrostatically applied gray powder epoxy/polyester finish on exterior of box and covers.
- Box has offset feed-thru conduit openings (3/4” NPT) on power side and one (3/4” NPT) on bottom instrument side.
- Covers have shrouded tamper resistant set screws as standard.
- Enclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes covers are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions.
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups A(suffix GA) B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Type
- Enclosure & 2 Blank Covers
- Cover Type
- Threaded
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- CSA File Number
- LR11716
- UL File Number
- E83696
- Series
- HK Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936295473
- Master Pack Description
- Each
Width4.380 in
ApplicationInstrumentation housed in HK Series enclosures typically used to measure, detect, monitor, transmit, and control industrial processes and systems. HK Series enclosures are suitable for a broad range of applications, meeting both domestic and international
Special FeaturesEnclosures are explosion proof, dust/ignition proof, weather proof, and tamper resistant. HK Series boxes covers are cast from a copper-free aluminum alloy. Neoprene O-rings are provided with HK boxes to assure water resistance in NEMA 4/IP66 conditions.
Engineering Drawing 1 Display Text2HKB-B-B - Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceINST BOX W/2 BLNK CVRS STD
Harmonization Code7616995190
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D252
Gross Weight with Packaging4.3
MaterialCopper-free aluminum
Base Unit of MeasureEA
Item Package TypeK-PAK
Certifications
- EU RoHS Indicator
- Contact Manufacturer
