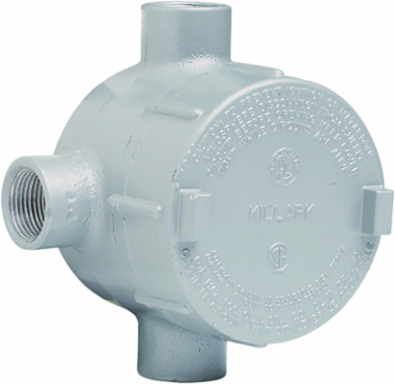

Killark GECTT-2-6TB Aluminum Terminal Box, 5.563 Inch x 4 Inch, 3/4 Inch Hubs, UL/CSA, IP66
Killark GECTT-2-6TB Aluminum Terminal Box, 5.563 Inch x 4 Inch, 3/4 Inch Hubs, UL/CSA, IP66
- MPN: GECTT-2-6TB
- UPC: 783936210391
- PPN: HBL-GECTT-2-6TB
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$347.22/ EA
Description
GEC-TB 2-3/4 ID RD Body, "T" 3/4" Hubs ,Qty 8, 2.5mm2 #12 AWG Panel Mount, UL/CSA, Class I, II, III, BCDEFG, Type 4 IP66, Terminal Box
Features
- Water shedding cover-suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Weather-resistant finish.
- Green ground screw standard in all boxes.

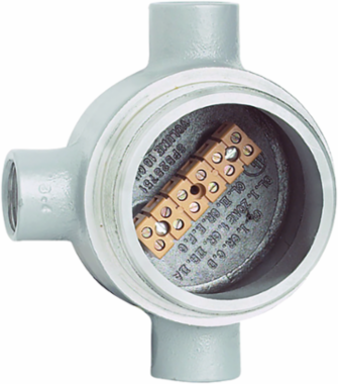

- Weidmuller 6 point MK3 terminal block is mounted inside box on raised X type pad.
- Box and cover are made of copper free aluminum.
- Electrostatically applied gray powder coating.
- Cover o-ring Nitrile gasket.
- Water shedding cover-suitable for wet locations when mounted in upright position. External cover threads on body protecting conductors from damage during pulling. No pinching of conductors during cover installation. Taper threaded hubs to provide ground c
Specifications
Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 3/4"
- Color
- Gray
- Size
- 5.563 in x 4 in x 5.563 in
- Type
- Outlet Body With Cover & Terminal Block
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- Hub Pattern
- T
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Dimensions5.563 in x 4 in x 5.563 in
Height5.563 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length5.563 in
Special FeaturesWater shedding cover-suitable for wet locations when mounted in upright position. External cover threads on body protecting conductors from damage during pulling. No pinching of conductors during cover installation. Taper threaded hubs to provide ground c
Width4 in
ARRA CompliantContact Manufacturer
Description - InvoiceGECTT-2 W/ 6 POINT TERMINAL
Harmonization Code8536908530
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.5
UL File NumberE10514
SeriesGE Series
Carton - SCC-14 Next Lower Level Sub Pack00783936210391
Certifications
- EU RoHS Indicator
- Contact Manufacturer
