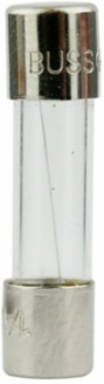

Bussmann GMA-15-R Eaton Bussmann series fast-acting fuse

Description

Features

• Engineered as a premium fast-blow glass cartridge, the GMA-1.5-R clears dangerous overcurrents rapidly, opening in a maximum of 2 minutes at 200% load. This instantaneous reaction isolates power surges before they can cascade into delicate printed circuit boards, control loops, or AV equipment, saving you from expensive component failures.
• Designed to the globally recognized miniature dimension of 5mm diameter by 20mm length (approx. 0.2" x 0.8"), this cartridge fuse provides a drop-in replacement for a massive array of domestic and imported electronics. The exact physical layout ensures tight terminal contact within standard panel-mount cap holders, inline blocks, and block clips without requiring circuit modifications.
• Fully rated for operations up to 250Vac, this 1.5-amp fuse features an interrupting capacity of 100A at 250Vac and up to 10,000A at 125Vac. This wide operating range gives maintenance technicians the flexibility to confidently deploy it across different industrial, commercial, and laboratory bench power systems without compromising short-circuit safety.
• Built with a high-transparency glass body and nickel-plated brass ferrule endcaps, this non-indicating fuse allows for immediate visual inspection of the internal filament. This eliminates the tedious troubleshooting guesswork associated with ceramic alternatives, letting bench technicians or operators quickly verify a fault and minimize machine downtime.

Documentation & Downloads

Specifications
