Mersen GPM-G Panel Mount Fuse Holder, 15-30 Amp, 5x20 mm, 1/4"x1-1/4" Fuses
- MPN: GPM-G
- UPC: 782001760625
- PPN: FER-GPM-G
CAD
$10.01
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

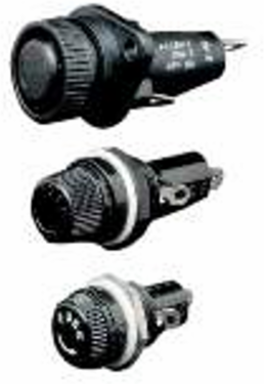

Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
Features
- The GPM-G is a premium, single-pole miniature panel-mount fuse holder designed to integrate directly into the faceplates, control cabinet doors, or chassis walls of industrial equipment. It allows equipment builders and facility engineers to mount critical auxiliary circuit protection externally, providing seamless frontline safety monitoring and replacement without opening the main enclosure doors.
- Standard North American miniature 1/4-inch x 1-1/4-inch (6.3mm x 32mm) glass or ceramic cartridge fuses, universally classified as 3AG form factors. It provides a perfect mechanical fit for Mersen series fuses like the GGC, GDL, GSA, and GAB, keeping the cartridge securely aligned against vibration.
- Engineered to manage supplemental branch lines, this rugged holder is fully rated for continuous operations up to 15 Amps at 250V AC.
- The rear section of the holder features high-conductivity dual-purpose terminals that accommodate either a standard 3/16-inch quick-connect slide terminal or direct permanent wire solder joints.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 1
- Mounting
- Panel Mount
- Materials Contact
- Tin-plated Copper
- SCCR
- 100kA/200kA
Voltage250 V
Terminal Type3/16” Solder/QC
Body MaterialThermoplastic Polycarbonate
MaterialGlass-filled polyester
StandardsUL Recognized Component to standard 4248-1, CSA Certified
