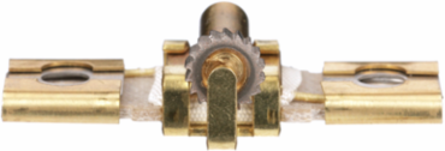

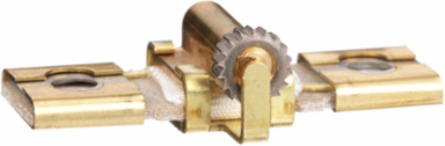

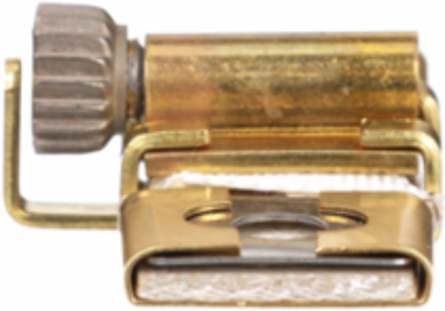

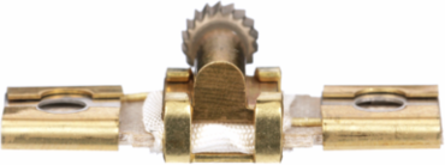

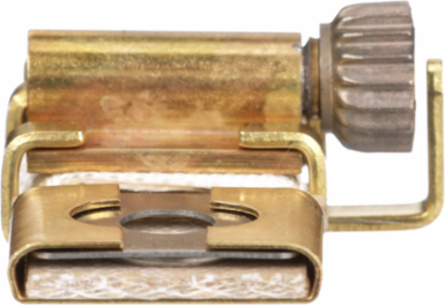

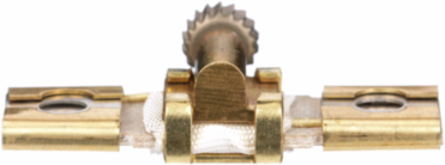

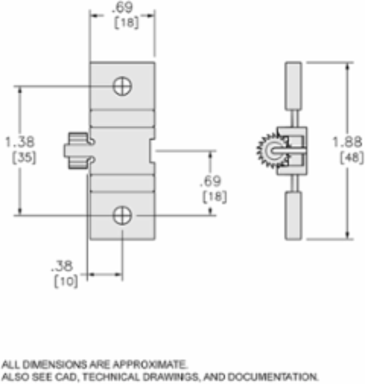

Square D B17.5 Thermal Fuse Holder, Class 20, 30 Amps, 250 V Max Rating
- MPN: B17.5
- UPC: 785901587521
- PPN: SCH-B17.5
CAD
$49.86
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class H fuses. The rating of the fuse can be up to 30 Amps with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 Amp. This fuse holder is UL listed and CSA certified.
Features
- Utilizing a precision thermal melting alloy design, this Type B thermal unit accurately mirrors the heating curve of your industrial motor's windings. By instantly releasing the spring-loaded trip mechanism when a sustained overcurrent occurs, it cuts off control circuit power before damaging heat can destroy insulation, preventing catastrophic motor failure
- Built to meet standard Class 20 tripping specifications, this heater element is engineered to trip within 20 seconds at 600% of its rated current. This allows the motor to tolerate safe, short-duration high-inrush currents during initial equipment startup while providing robust, long-term thermal overload protection during continuous operation.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A
- Motor Tripping Class
- 20
- Pole Count
- 2
- Thermal Overload Type
- melting alloy
- Fuse Clip Material
- Tin-plated copper alloy
- Pvc Free
- Yes
- China Rohs Regulation
- Out of China RoHS scope
- Range Of Product
- B
Voltage250 V
AIC Rating10,000 A
Wire Gauge Compatibility14 to 10 AWG (2.5 to 4 mm²)
Fuse Classes SupportedH, R, CC, M, J
Fuse Holder Base MaterialHigh impact thermoplastic
Reach RegulationContains SVHC above threshold
Eu Rohs DirectiveOut of EU RoHS scope
ComplianceUL Listed, CSA Certified
