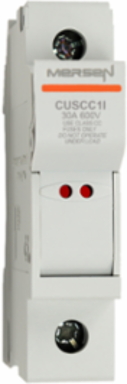

Mersen P1062797 Modulostar 1-Pole Fuse Holder, 30 A, IP20, DIN Rail Mounting
- MPN: P1062797
- PPN: FER-P1062797
CAD
$18.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

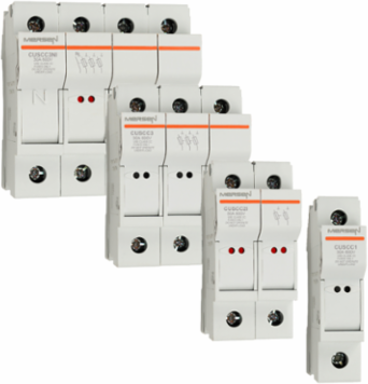

Mersen’s innovative Modulostar CUSCC fuse holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modulostar CUSCC fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. Made of tough and durable thermoplastic or thermoset material. Recommended for use with Mersen Class CC fuse-links: ATDR, ATMR, and ATQR.
Specifications
Key Specifications
| Rated voltage AC UL | 600 V |
|---|---|
| Ampere Rating | 30 A |
| AC or DC | AC/DC |
| Short Circuit Current Rating (SCCR) | 200 kA |
| Indication System | Yes |
| Number of Poles | 1-Pole |
| Installation Mounting | DIN rail acc. EN 60715 |
| Conventional Free Air thermal Current With Fuse-Links Ith | 30 A |
| Length | 2.41 in |
| Weight | 0.101 lb |
| Rated voltage DC UL | 600 V |
|---|---|
| ROHS Compliant | Yes |
| Fuse Class | Class CC |
| Design Details | CUSCC single pole |
| Indication System Type | Visual Indicator |
| Torque Rating | 17.701 lb-in |
| Body/Insulating Material | PA6 |
| Width | 0.69 in |
| Height | 3.12 in |
