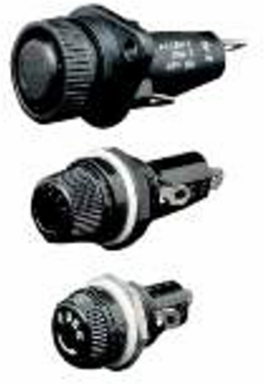

Mersen GPM-A8 GPM Panel Mount Fuse Holder, 15-30A, 1 Pole, 250-600VAC, 600VDC
- MPN: GPM-A8
- UPC: 782001360382
- PPN: FER-GPM-A8
CAD
$16.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
Specifications
Product Details
| Standards | UL Recognized Component to standard 4248-1, File E52283 CSA Certified, Class 6225, File 32169 UL Recognized Component to standard 4248-1, File E118864 CSA Certified, Class 908501, File AP82191 |
|---|---|
| ROHS Compliant | Consult Technical Services |
| Mounting | Panel Mount |
| Ampere Range | 15 - 30 A |
| DC Voltage | 600 VDC |
| Lead Free | Consult Technical Services |
| Body Material | Thermoplastic Polycarbonate |
| Number of Poles | 1 |
|---|---|
| CE conformity | Consult Technical Services |
| AC Voltage Range | 250 - 600 VAC |
| Materials Contact | Tin-plated Copper |
| Connection Terminal Type | 1/4" Quick Connect / Solder 1/4" Quick Connect / Solder, Right Angle Solder Solder, Right Angle 3/16" Solder / QC 1/4" Solder / QC Quick Connect |
| SCCR | 100kA/200kA |
