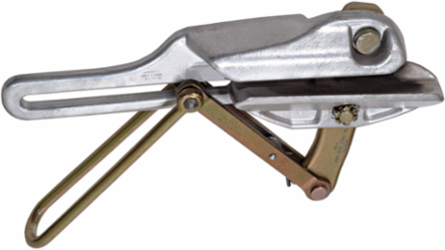

Klein Tools 1628-50 Chicago Grip for Large Diameter Conductors, 0.95" to 1.89" Cable Diameter, 25,000 lb Max Load

Chicago Grip for Large Diameter Conductors, 0.95" to 1.89" Cable Diameter, 25,000 lb Max Load
  • MPN: 1628-50
  • UPC: 092644470660
  • PPN: KLT-1628-50
  • UNSPSC: 46182308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3406.31/ EA

Description

This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.

Features

  • Removable jaw allows for installation of cable
  • Round jaws are provide maximum contact with the cable minimizing deformation
  • Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
  • These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.
  • Jaw must be removed to insert cable
  • Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
  • These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable

Specifications

Specifications

Cable Diameter
0.95" to 1.89" (24.13 to 48 mm)
Type
Chicago Grip
Overall Height
9.19" (23.3 cm)
Maximum Safe Load
25,000 lb (11,340 kg)
Jaw Length
10.75" (27.3 cm)
Jaw Type
Round
Hot Latch
No
Swing Latch
No
Height
2.9250 in
Depth
17.5500 in
Overall Width3.12" (7.9 cm)
ApplicationWire Pulling
MaterialSteel
Cable TypeACSR, ACSS, ACSS-TW, AAC
Overall Length31" (78.7 cm)
Locking HandleYes
SpringYes
Teeth TypeSmooth
Width8.5500 in
Weight29.0250 lbs
