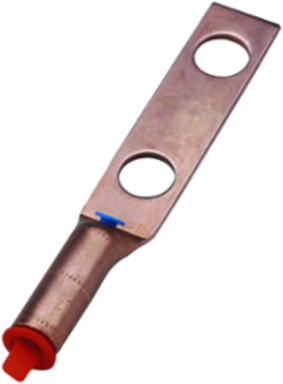

Burndy YGA282N HYLUG Compression Terminal 4/0 Str, 1/2 Inch Stud, 5.17 Inch Length

MPN: YGA282N
UPC: 781810220320
PPN: BUR-279047

$57.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Grounding Irreversible Compression Terminals, 4/0, 1/2 Stud.

Documentation & Downloads

Specifications

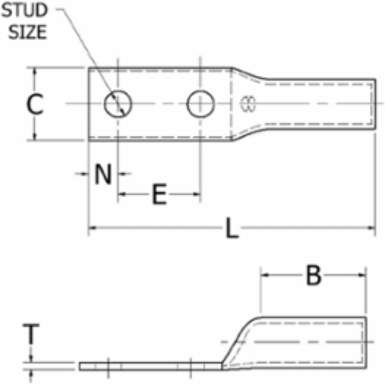

Dimensions

Dimension - B Length fraction	1-4/7 in
Dimension - Hole Size inch	0.56 in
Dimension - L Length Overall mm	131 mm
Dimension - N inch	0.62 in
Dimension - Pad Width inch	1.00 in
Dimension - Stud Size fraction	1/2
Dimension - Width fraction	1/2 in

Dimension - B Length inch	1.57 in
Dimension - Hole Size mm	14 mm
Dimension - Length Overall inch	5.17 in
Dimension - Outside Diameter inch	0.69 in
Dimension - Strip Length inch	1-11/16
Dimension - Stud Size inch	1/2
Dimension - Width inch	0.53 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Listed Direct Burial	Yes
Certification - cULus	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - UL Recognized	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Conductor Related

Conductor - Copper Str Size	4/0 Str.

Conductor - Copper Str Size Range	4/0 Str.

General

Application	For Grounding Applications And Direct Burial In Earth Or Concrete
Connector Type	Terminal
Material	Copper
Plated	N
Sub Brand	HYLUG
Type	Terminals
UPC 12 Digit	7818102203200
