Copper Compression Lug Terminal, 3/0 AWG, 1/2 Inch Stud, 2 Crimps Required
Burndy

Burndy YGHA272N Copper Compression Lug Terminal, 3/0 AWG, 1/2 Inch Stud, 2 Crimps Required

  • MPN: YGHA272N
  • UPC: 781810169216
  • PPN: BUR-25014243

CAD

$170.97

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

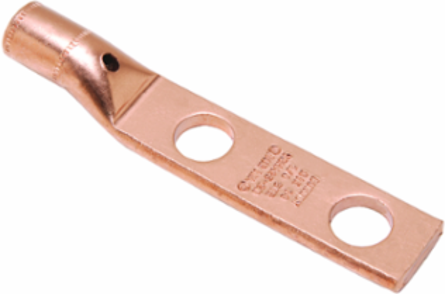

Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe Hole, 3/0 AWG, 1/2" Stud, 1-3/4" Stud Hole Spacing, Short Barrel.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction
1-9/50 in
Dimension - D inch
3.00 in
Dimension - Hole Size mm
14 mm
Dimension - Length Overall inch
4.94 in
Dimension - Outside Diameter inch
0.79 in
Dimension - Stud Size fraction
1/2
Dimension - Z inch
0.62 in
Dimension - B Length inch1.18 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm125 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch1.08 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Listed Direct Burial
Yes
Certification - cULus
No
UL Listed
Yes
Certification - ETLNo
Certification - UL RecognizedNo
Standards - RoHS Compliance StatusCM

Conductor Related

Conductor - Copper Str Size
3/0 AWG
Conductor - Copper Str Size Range3/0 AWG

General

Application
For Direct Burial In Earth Or Concrete, Grounding Applications
Die Index
16
Physical Attribute - Number of Crimps Required
2
Plating Type
Unplated
Trade Name
HYLUG™
UPC
781810169216
Connector TypeTerminal
MaterialCopper
PlatedN
Sub BrandHYLUG
TypeTerminals
UPC 12 Digit7818101692166

Logistics

Minimum Pack Quantity
1
