Copper Compression Lug Terminals, 1/0 AWG, 1/2 Inch Stud, 4.60 Inch Length Overall
Burndy

Burndy YGHA252N Copper Compression Lug Terminals, 1/0 AWG, 1/2 Inch Stud, 4.60 Inch Length Overall

  • MPN: YGHA252N
  • UPC: 781810220610
  • PPN: BUR-279158

CAD

$107.63

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

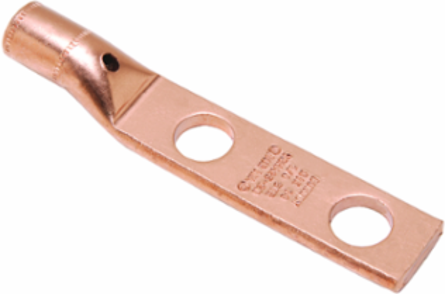

Copper Compression Lug, Heavy Duty, 2 Hole w/ Inspection Probe Hole, 1/0 AWG, 1/2" Stud, 1.75" Stud Hole Spacing, Short Barrel.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction
39/47 in
Dimension - D inch
3.00 in
Dimension - Hole Size mm
14 mm
Dimension - Length Overall inch
4.60 in
Dimension - Outside Diameter inch
0.63 in
Dimension - Stud Size fraction
1/2
Dimension - Z inch
0.62 in
Dimension - B Length inch0.83 in
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm117 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch0.91 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Listed Direct Burial
Yes
Certification - cULus
No
UL Listed
Yes
Certification - ETLNo
Certification - UL RecognizedNo
Standards - RoHS Compliance StatusCM

Conductor Related

Conductor - Copper Str Size
1/0 AWG
Conductor - Copper Str Size Range1/0 AWG

General

Application
For Direct Burial In Earth Or Concrete, Grounding Applications
Die Index
14
Physical Attribute - Number of Crimps Required
1
Plating Type
Unplated
Trade Name
HYLUG™
UPC
781810220610
Connector TypeTerminal
MaterialCopper
PlatedN
Sub BrandHYLUG
TypeTerminals
UPC 12 Digit7818102206100

Logistics

Minimum Pack Quantity
1
