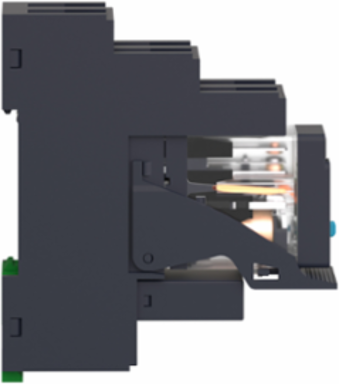

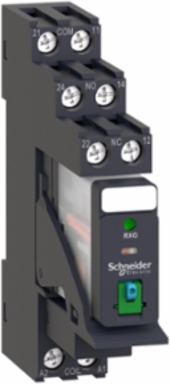

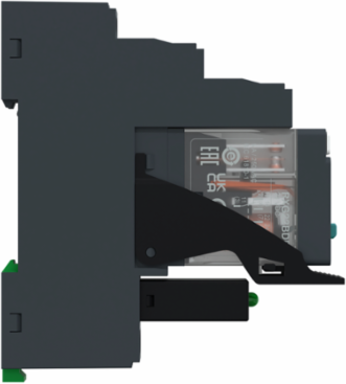

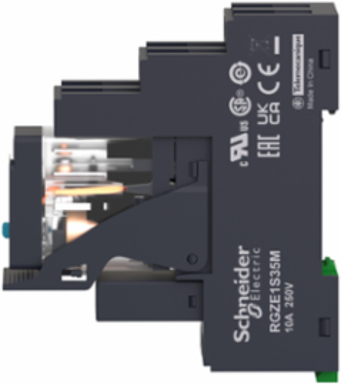

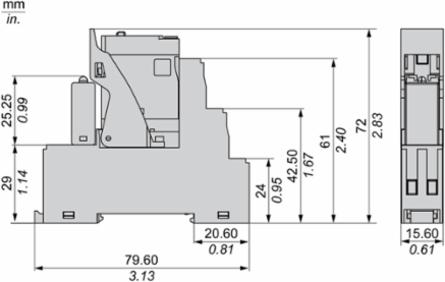

Schneider Electric RXG22BDPV Harmony Electromechanical Relay, 5A, 24V DC, 2 CO, Lockable Test Button
Schneider Electric RXG22BDPV Harmony Electromechanical Relay, 5A, 24V DC, 2 CO, Lockable Test Button
- MPN: RXG22BDPV
- PPN: SCH-RXG22BDPV
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$40.02/ EA
Description
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled standard cover relay mounted on a separate contact terminal socket with integrated clamp and a diode protection module. This is a 5A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The standard cover relay offers single-step lockable test button and LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Specifications
Environment
- Product Certifications
- CSA || CE || EAC || UL || DNV-GL
- Standards
- IEC 61810-1 || CSA C22.2 No 14 || UL 508 || IEC 61984
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP20
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 1.5 mm 10-150 Hz)in operation || 5 gn +/- 1.5 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Insulation Resistance
- 1000 MOhm 500 V DC
- Torque Value
- 0.8 N.m || 7.0 lbf.in
- Test Levels
- level A group mounting
- Pollution Degree
- 2
- Dielectric Strength
- 1000 V AC between contacts micro disconnection || 1300 V between terminals and base basic insulation || 3000 V between terminals and LTB area basic insulation || 3000 V AC between poles basic insulation || 5000 V AC between coil and contact reinforced insulation
- Net Weight
- 0.065 kg
- Maximum Switching Voltage
- 250 V
- Device Presentation
- complete product
- Average Coil Consumption
- 0.53 W DC
- [Ui] Rated Insulation Voltage
- 250 V IEC
- Mechanical Durability
- 10000000 cycles
- Mounting Position
- any position
- Load Current
- 5 A
- Minimum Switching Capacity
- 50 mW 10 mA, 5 V DC
Maximum Switching Capacity1250 VA AC || 150 W DC
[Uc] Control Circuit Voltage24 V DC
Operating Rate<= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
Protection CategoryRT I
Contacts Materialsilver alloy (AgSnO2In2O3)
Shock Resistance20 gn in operation || 100 gn not in operation
Status Ledwith
Colour Of Covertransparent
Control Typelockable test button
Connections - Terminalsconnector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
[Ie] Rated Operational Current5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
Electrical Durability100000 cycles resistive
Resistance1100 Ohm +/- 10 %
Overvoltage CategoryIII
Drop-Out Voltage Threshold>= 0.1 Uc DC
Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Device Short Name
- RXG
Product Or Component Typepre-assembled plug-in relay with socket
Contacts Type And Composition2 C/O
[Ithe] Conventional Enclosed Thermal Current5 A
