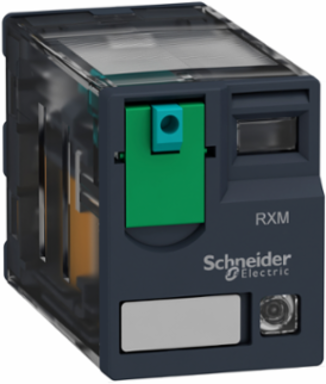

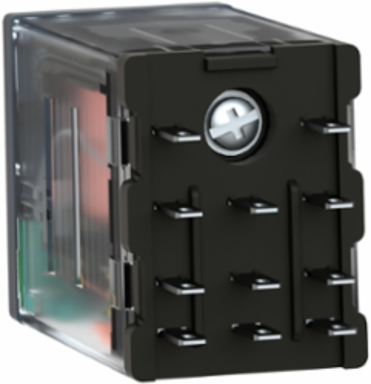

Schneider Electric RXM3AB2BD Miniature Plug-in Relay, 10A, 3 C/O, 24V DC, Lockable Test Button, LED

MPN: RXM3AB2BD
PPN: SCH-RXM3AB2BD

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$19.38

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

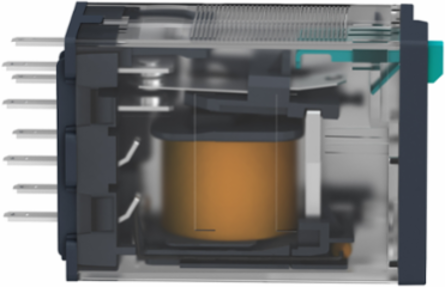

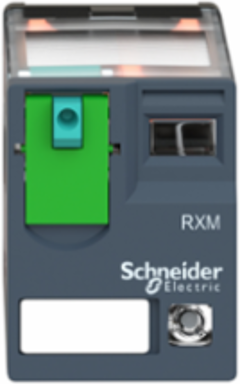

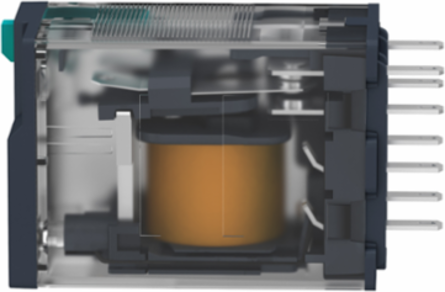

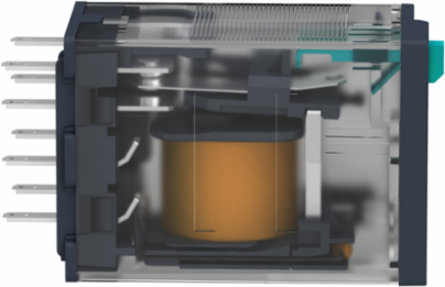

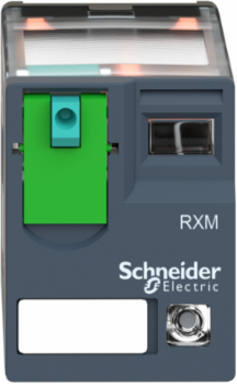

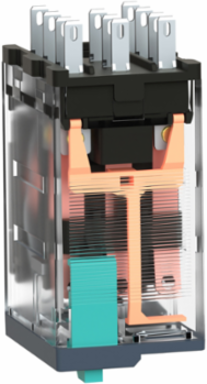

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.

Features

Equipped with 3 Changeover (Double Throw) contacts rated at 10 Amps, this miniature relay allows industrial automation panel builders to switch three separate circuits from a single input signal. This multi-pole layout simplifies complex control wiring and minimizes the number of auxiliary components needed inside busy motor control centers and PLC interface networks.
Featuring a highly efficient 24V DC coil with an average power consumption of just 0.9 Watts, the relay can be driven directly by standard PLC transistor outputs without risking overcurrent damage to the controller. The 650-Ohm coil resistance maintains minimal thermal dissipation, keeping your control cabinet operating temperatures lower and protecting nearby solid-state instrumentation.
Outfitted with both a high-visibility green LED and a mechanical orange flag indicator, this relay provides dual-layered status monitoring for swift control panel auditing. The bright LED gives clear electrical confirmation of coil energization even in dimly lit factory spaces, while the mechanical flag ensures contact position visibility when the enclosure is completely de-energized during lockout-tagout procedures.

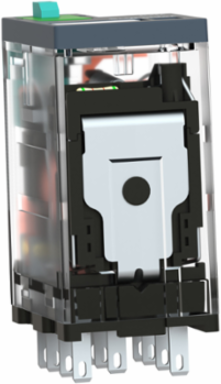

Utilizing standard flat, faston-style pins, this plug-in relay interfaces seamlessly with the complete family of Harmony RXZE screw-clamp, push-in, or separate terminal sockets. This slide-in design allows field electricians to swap out units in seconds without disconnecting field wiring, while optional metal or plastic maintaining clamps guarantee high-vibration stability in heavy industrial machinery.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Singapore, United States

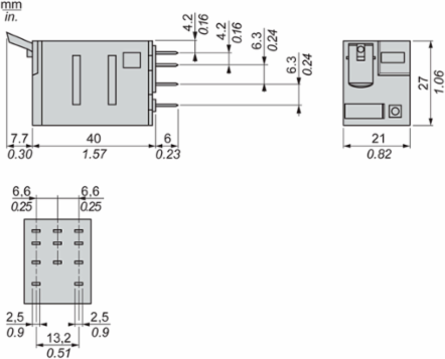

Physical Attributes

Cad Overall Depth	80.35 mm

Cad Overall Height	82.8 mm

Complementary Attributes

Control Circuit Type	DC
Maximum Switching Capacity	2500 VA/280 W
Minimum Switching Capacity	170 mW 10 mA, 17 V

Line Rated Current	10 A
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	19.2...26.4 V DC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	1300 V AC between contacts with micro disconnection2000 V AC between coil and contact, 2000 V AC between poles
Control Circuit Voltage	24 V
Certificate Agency	UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
[Uc] Control Circuit Voltage	DC, 24 V
Carbon Footprint Of The Distribution Phase [A4]	0.0047738385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0002262618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	3 kg CO2 eq., 3.4204182975
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2106019EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption	0.9 W
Compatibility Code	RXM
Contacts Type And Composition	3 C/O
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Time	20 ms
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Software Version	EIME v5.9.1
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	4 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit Unit	Unit
Energy Consumption On Product Lifetime In Kwh	4.94
Energy Model - Installation [A5]	Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 120V; US
[Ithe] Conventional Enclosed Thermal Current	10 A
Drop-out Voltage Threshold	>= 0.1 Uc>= 0.1 Uc
Package Weight(Lbs)	37.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Control Circuit Type2	DC
[Ie] Rated Operational Current	5 A 250 V AC) NC IEC10 A 28 V DC) NO IEC10 A 250 V AC) NO IEC5 A 28 V DC) NC IEC10 A 30 V DC) UL, 10 A 277 V AC) UL
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.2927376966
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	650 Ohm 20 °C +/- 10 %
Contacts Material	AgNi
Control Type	lockable test button
Load Current	10 A 250 V AC10 A 28 V DC
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	miniature relay
Returnability	Yes
Series Name	RXM series
Shock Resistance	10 gnin operation30 gnnot operating
Status Led	with
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Pep Code	ENVPEP2106019EN
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; 120V; US
Recyclability Potential In %	55
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536410050

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Environmental Disclosure	ENVPEP2106019EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2021-12-01
Psr Version	PSR-0005-ed2-EN-2016 03 29

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	3.7229960631
Circularity Profile	ENVEOLI2106019EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2106019EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
