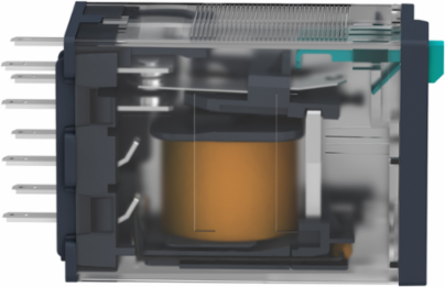

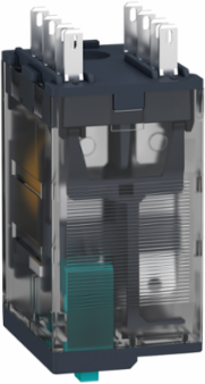

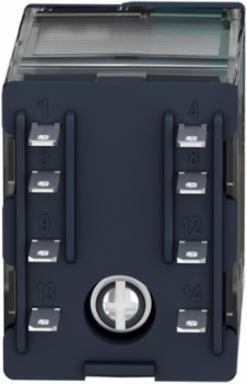

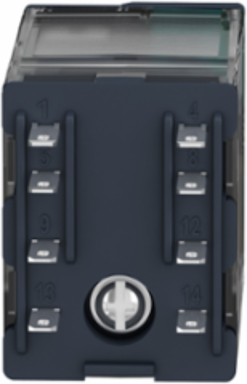

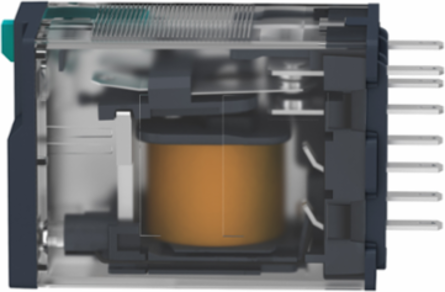

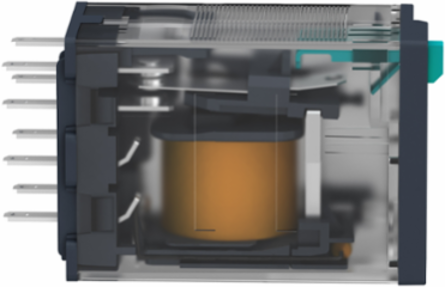

Schneider Electric RXM2AB2BD Miniature Relay 12A, 2 C/O, 24V DC, Lockable Test Button, LED
- MPN: RXM2AB2BD
- PPN: SCH-RXM2AB2BD
CAD
$14.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

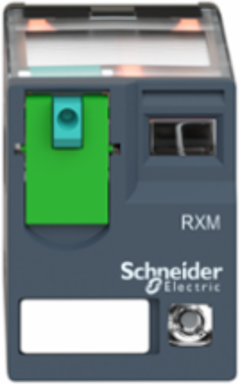

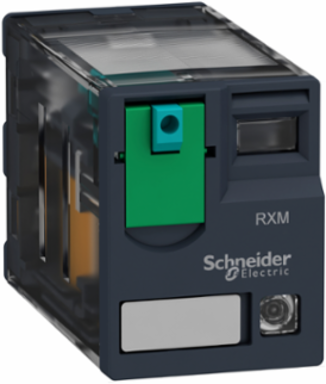

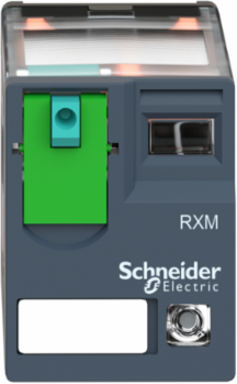

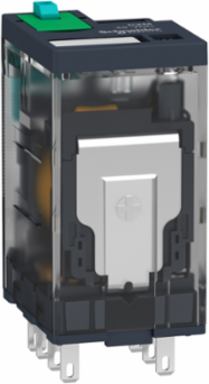

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Features
- The Schneider RXM2AB2BD is a high-performance plug-in relay from the Harmony Electromechanical Relay (RXM) range. It acts as an interface between a low-power control system (like a PLC) and higher-power electrical loads. Its compact "miniature" size makes it the industry standard for high-density control panels where space is limited.
- The "2AB" code indicates that this relay features 2 C/O (Changeover) or DPDT (Double Pole Double Throw) contacts. This allows you to switch two separate circuits simultaneously. Each pole can switch between a Normally Open (NO) and Normally Closed (NC) state.
- The "BD" suffix is critical: it specifies a 24V DC coil voltage. This is the most common control voltage for modern PLC outputs and industrial automation systems. The relay includes a built-in Green LED that lights up when the coil is energized, allowing for instant visual troubleshooting.
- Despite its small size, each pole is rated for 12 Amps at 250V AC or 28V DC. This provides a significant power-to-size ratio, allowing you to control small motors, solenoids, or banks of pilot lights directly from the relay.
- The RXM2AB2BD is equipped with a lockable test button (the blue lever on the front). You can push it to momentarily change the contact state or pull it up to lock the contacts in the "energized" position for circuit commissioning without needing to power the coil.
Documentation & Downloads

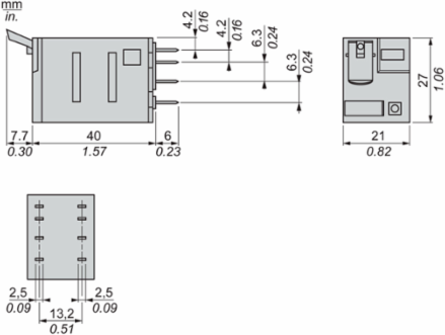

Specifications
Key Specifications
- Country of Origin
- China, Indonesia, Singapore, United States
Complementary Attributes
- Control Circuit Type
- DC
- Maximum Switching Capacity
- 3000 VA/336 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current12 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- lockable test button, lockable test button
- Operating Rate
- <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Certificate Agency
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- [Uc] Control Circuit Voltage
- DC, 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0047738385, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0002262618
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 16 kg CO2 eq., 15.6224185318
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2106019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.9 W
- Compatibility Code
- RXM
- Contacts Type And Composition
- 2 C/O
- Load Current
- 12 A 250 V AC12 A 28 V DC
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- miniature relay
- Returnability
- Yes
- Series Name
- RXM series
- Shock Resistance
- 10 gnin operation30 gnnot operating
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 16 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Pep Code
- ENVPEP2106019EN
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Recyclability Potential In %
- 55
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
Status Ledwith, with
[Ie] Rated Operational Current6 A 250 V AC) NC IEC12 A 28 V DC) NO IEC12 A 250 V AC) NO IEC6 A 28 V DC) NC IEC, 12 A 28 V DC) UL, 12 A 277 V AC) UL
[Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.0048399687, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.2927376966
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance650 Ohm 20 °C +/- 10 %
Contacts MaterialAgNi
Electrical Durability100000 cycles resistive
Mechanical Durability10000000 cycles
Operating Time20 ms
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms
Safety Reliability DataB10d = 100000
Shape Of Pinflat (faston type)
Software VersionEIME v5.9.1
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Control Circuit Voltage24 V
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionRXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime In Kwh21.024
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
[Ithe] Conventional Enclosed Thermal Current12 A
Drop-out Voltage Threshold>= 0.1 Uc>= 0.1 Uc
Package Weight(Lbs)37.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Environmental Disclosure
- ENVPEP2106019EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2021-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint15.9249962974
Circularity ProfileENVEOLI2106019EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2106019EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Output Attributes
- Continuous Output Current
- 10 A
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
