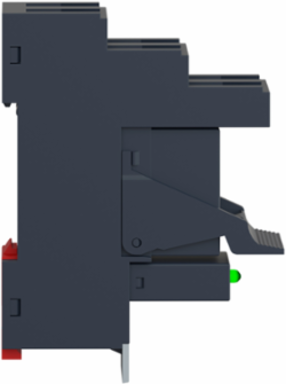

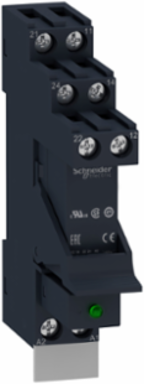

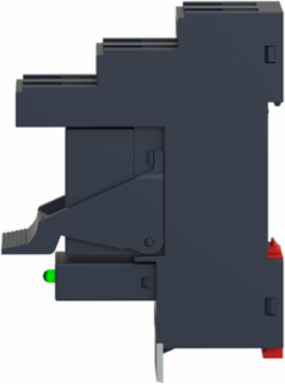

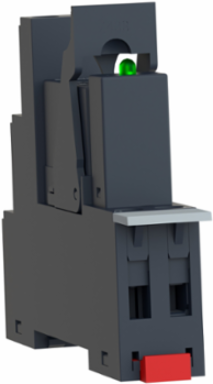

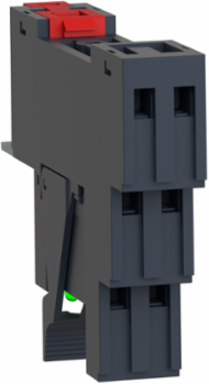

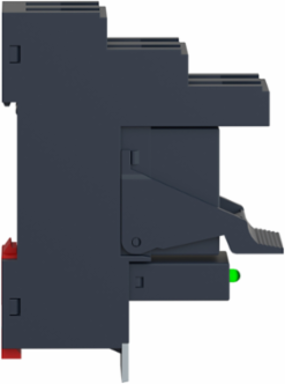

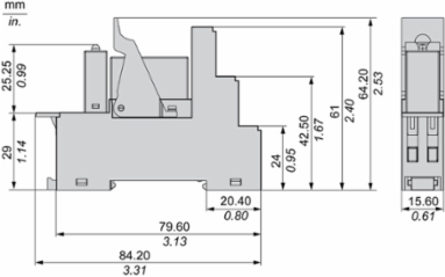

Schneider Electric RSB2A080BDPV Harmony Electromechanical Relay 8A 2CO 24V DC with LED Indicator
- MPN: RSB2A080BDPV
- PPN: SCH-RSB2A080BDPV
CAD
$39.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled electromechanical relay mounted on a separate contact terminal socket with diode protection module and maintaining clamp. This is a 8A, 24Vdc, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The protection module comes with a green LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.057Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. This RSB plug-in relay range comprises of 12A relays with 1 CO contact, 16A relays with 1 CO contact, and 8A relays with 2 CO contacts.
Features
- This is a completely pre-assembled, all-in-one interface relay package that includes the 24V DC electromechanical relay, a separate contact terminal socket, a built-in diode protection module, and a secure maintaining clamp. By sourcing this pre-mounted unit, industrial control panel builders and automation technicians save significant labor time during installation while ensuring optimized component compatibility right out of the box.
- The unit features a 2 C/O contact composition rated for a conventional enclosed thermal current of 8 A at 250 V AC or 28 V DC. This dual-pole layout provides versatile switching paths, allowing you to control multiple isolated circuits or handle redundant signaling loops simultaneously within demanding motor control centers and automated machinery.
- Designed with an integrated diode protection module, this relay safely suppresses inductive voltage spikes when the 24V DC coil collapses, protecting sensitive upstream PLC digital output cards from electrical damage. Additionally, a highly visible integrated green LED provides immediate, real-time visual diagnostic confirmation of coil energization without requiring manual testing with a multimeter.
- The complete assembly securely snaps onto a standard 35mm DIN rail and utilizes heavy-duty screw clamp terminals for robust electrical connections. The terminal blocks accept solid or flexible wiring ranging from AWG 22 down to AWG 14, providing the mechanical flexibility needed to match your existing control panel wiring standards while resisting vibration-induced loosening.
- Built for extreme reliability, the silver alloy (AgNi) contacts offer an expansive mechanical durability of 30,000,000 cycles and an electrical endurance of 100,000 cycles under full load.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|
Complementary Attributes
| Rated Current | 8 A |
|---|---|
| Line Rated Current | 8 A |
| Maximum Switching Voltage | 300 V DC IEC |
| Minimum Switching Current | 10 mA |
| Control Circuit Type | DC |
|---|---|
| Maximum Switching Capacity | 2000 VA AC224 W DC |
| Minimum Switching Capacity | 120 mW 10 mA, 12 V |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Operating Rate | <= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 600 cycles/hour under load, <= 600 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Torque Value | 0.8 N.m, 7.0 lbf.in |
| Contacts Composition | 2 C/O |
| [Uc] Control Circuit Voltage | DC, 230 V |
| Drop-out Voltage Threshold | >= 0.1 Uc DC, >= 0.1 Uc DC>= 0.1 Uc DC, >= 0.1 Uc DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.095192543, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.5 kg CO2 eq., 0.5075869981 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Coil Consumption | 0.45 W DC |
| Compatibility Code | RSB |
| Contact Terminal Arrangement | separate |
| Contacts Type And Composition | 2 C/O |
| Dielectric Strength | 1000 V AC between contacts2500 V AC between poles5000 V AC between coil and contact |
| Load Current | 8 A 250 V AC8 A 28 V DC |
| Operating Position | any position |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Range Of Product | Harmony Electromechanical Relays |
| Returnability | Yes |
| Sale Per Indivisible Quantity | 30 |
| Shape Of Pin | flat (PCB type) |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Test Levels | level A group mounting |
| Control Circuit Voltage | 230 V |
| Pep Code | ENVPEP2403026EN |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| [Ie] Rated Operational Current | 4 A AC-1/DC-1) NC IEC8 A AC-1/DC-1) NO IEC |
| [Ue] Rated Operational Voltage | 19.2...26.4 V DC |
| [Uimp] Rated Impulse Withstand Voltage | 3.6 kV IEC 61000-4-5 |
| Package Weight(Lbs) | 55.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Time | 20 ms operating, 20 ms reset |
| Vibration Resistance | +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Certificate Agency | CE, UL, CSA, EAC |
| Connections - Terminals | screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0074535946, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.000366413 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 9 kg CO2 eq., 9.2057137078 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Resistance | 1440 Ohm DC 20 °C +/- 15 % |
| Contact Operation | standard |
| Contacts Material | silver alloy (AgNi) |
| Control Type | without lockable test button |
| Electrical Durability | 100000 cycles, 8 A at 250 V, AC-1 NO100000 cycles, 4 A at 250 V, AC-1 NC |
| Mechanical Durability | 30000000 cycles |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Category | RT I |
| Relay Type | interface relay |
| Safety Reliability Data | B10d = 100000 |
| Series Name | RSB series |
| Shock Resistance | 10 gn 11 ms) not operating IEC 60068-2-275 gn 11 ms) in operation IEC 60068-2-27 |
| Status Led | with |
| Switching Voltage | 12 V |
| Total Lifecycle Carbon Footprint | 10 kg CO2 eq. |
| Control Circuit Type2 | DC |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The main purpose of the RSB Interface plug-in Relay is having at least 2 C/O contacts for switching by a small control signal controlling a larger load current or voltage. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; CN |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR |
| Recyclability Potential In % | 75 |
| [Ithe] Conventional Enclosed Thermal Current | 8 A -40-40 °C |
| [Ui] Rated Insulation Voltage | 400 V IEC 60947 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410020 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-85 °C DC), -40-85 °C DC)-40-85 °C DC), -40-85 °C DC) |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 9.8163132566 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2403026EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2403026EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | pre-assembled plug-in relay with socket |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001437 |
|---|
| ETIM 9 | EC001437 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 Months |
|---|
| Warranty | 18 Months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
