Schneider Electric RXM4AB2BD Miniature Plug-in Relay, 4 C/O, 6A, 24V DC, Lockable Test Button, with LED
- MPN: RXM4AB2BD
- PPN: SCH-RXM4AB2BD
CAD
$18.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

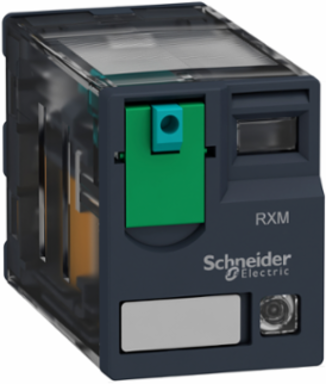

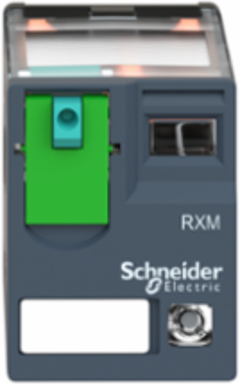

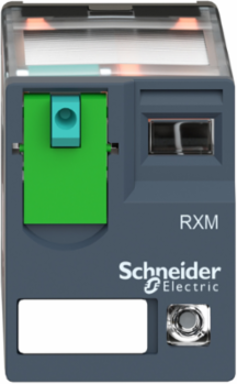

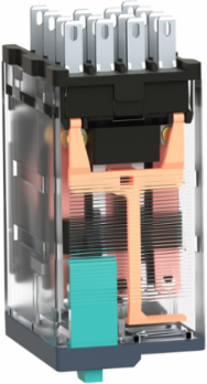

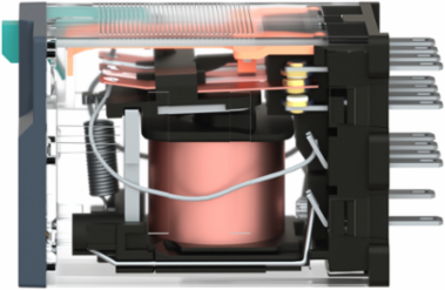

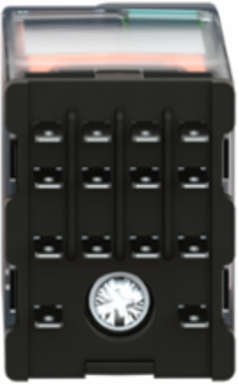

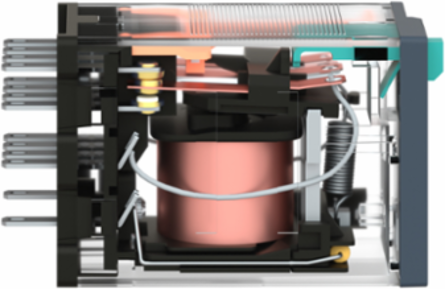

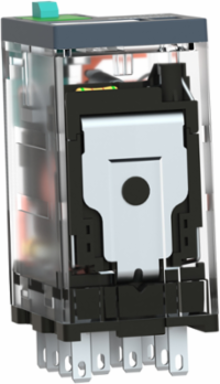

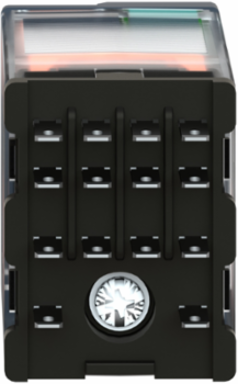

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Status display with LED: clearly signal both in the day and night. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Features
- The RXM4AB2BD is an industrial-grade miniature relay from the Harmony Electromechanical range. It acts as a remote switch, allowing a low-power control signal from a PLC or sensor to manage higher-power loads. This 4-pole relay is designed to plug directly into a socket (such as the RXZE2M114M), facilitating fast installation and tool-free replacement in complex automation panels.
- Featuring a 4 C/O (4PDT) contact arrangement, this relay can simultaneously switch four independent electrical circuits. With a conventional thermal current rating of 6 Amps, it is the ideal solution for interlocking logic, signaling, and controlling multiple auxiliary loads like solenoid valves, small motors, or contactor coils from a single input.
- This specific model is engineered for 24V DC control circuits, the gold standard for modern industrial automation and safety systems. The high-quality coil is designed for low power consumption and reliable pull-in, ensuring consistent performance even in environments where voltage drops might occur over long wire runs.
- The RXM4AB2BD is equipped with an integrated mechanical indicator and a green LED. These dual visual cues allow maintenance personnel to see the status of the relay at a glance even in dark or crowded cabinets drastically reducing troubleshooting time and simplifying "dead-circuit" verification during service calls.
- This relay features a lockable "Test Button" on the front housing. This allows technicians to manually force the contacts to change state, enabling the testing of downstream field devices or control logic without having to energize the entire PLC system. The button is color-coded to identify the DC voltage type quickly.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Indonesia, Singapore, United States

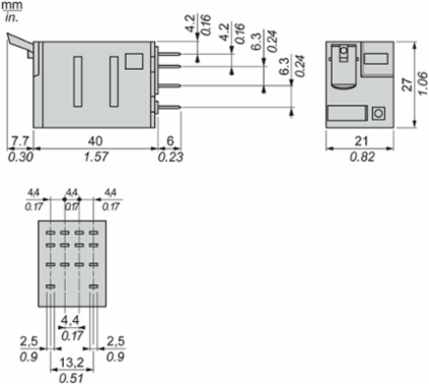

Physical Attributes
- Cad Overall Depth
- 80.35 mm
Cad Overall Height82.8 mm
Complementary Attributes
- Control Circuit Type
- DC
- Maximum Switching Capacity
- 1500 VA/168 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current6 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits19.2...26.4 V DC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with basic insulation, 2000 V AC between poles with basic insulation
- Status Led
- with, with
- Certificate Agency
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.0048399687, 0 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.2927376966
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2106019EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.9 W
- Compatibility Code
- RXM
- Contacts Type And Composition
- 4 C/O
- Electrical Durability
- 100000 cycles resistive
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat (faston type)
- Software Version
- EIME v5.9.1
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 20 %
- Control Circuit Voltage
- 24 V
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US
- Recyclability Potential In %
- 55
- [Ithe] Conventional Enclosed Thermal Current
- 6 A
- Drop-out Voltage Threshold
- >= 0.1 Uc>= 0.1 Uc
- Package Weight(Lbs)
- 35.000 g
- Warranty (In Months)
- 18
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 189.726
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Contacts Composition4 C/O
[Uc] Control Circuit VoltageDC, 24 V
Carbon Footprint Of The Distribution Phase [A4]0.0047738385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0002262618
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]15 kg CO2 eq., 14.9935628571
Local Publishable Date2026-03-26
Stocking FlagY
Service Catalog ItemFinished good
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance650 Ohm 20 °C +/- 10 %
Contacts MaterialAgNi
Control Typelockable test button
Load Current6 A 250 V AC6 A 28 V DC
Operating Positionany position
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typeminiature relay
ReturnabilityYes
Series NameRXM series
Shock Resistance10 gnin operation30 gnnot operating
Sustainable PackagingYes
Total Lifecycle Carbon Footprint15 kg CO2 eq.
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep CodeENVPEP2106019EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US
[Ie] Rated Operational Current6 A 250 V AC) NO IEC3 A 28 V DC) NC IEC3 A 250 V AC) NC IEC6 A 28 V DC) NO IEC6 A 277 V AC) UL8 A 30 V DC) UL
[Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 µs
Nbr. Of Units In Pkg.1
Take-backNo
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]189.726
Customs Code8536490065
Environment Attributes Main
