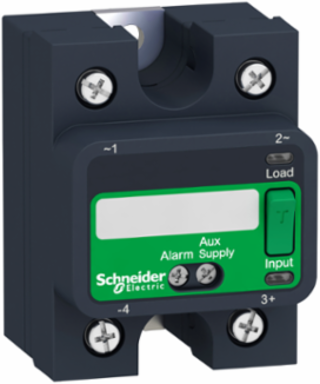

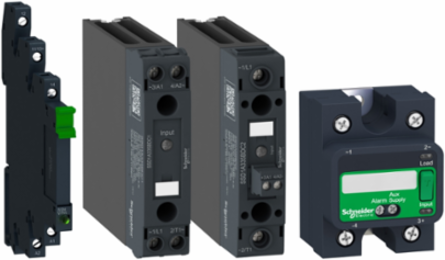

Schneider Electric SSP1A125BDS Harmony Solid State Relay 25 A Panel Mount Zero Voltage Switching

MPN: SSP1A125BDS
PPN: SCH-SSP1A125BDS
UNSPSC: 39122333

$112.37

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony Solid State Relay 25 A Panel Mount Zero Voltage Switching

Documentation & Downloads

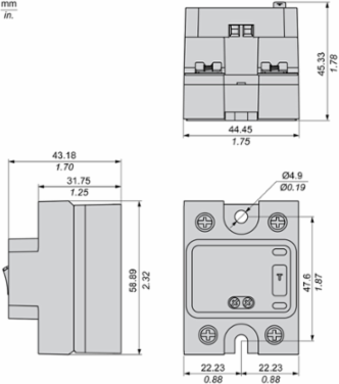

Specifications

Key Specifications

Country of Origin	Brazil

Weight	109 g

Complementary Attributes

Maximum Voltage Drop	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uimp Rated Impulse Withstand Voltage	6 kV output to case, 6 kV input to output
Line Rated Current	25 A
Maximum Leakage Current	1 mA off-state
Maximum Switching Voltage	1 V DC turn-off
Minimum Switching Voltage	4 V DC turn-on

Uc Control Circuit Voltage	DC, 4...32 V
Absolute Maximum Voltage	600 V
Maximum Horse Power Rating	0.5 hp 120 V AC1 hp 240 V AC
Maximum Output Current	30 mA 32 V DC
Minimum Load	150 mA
Rated Current	25 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	with test button, with test button
Electromagnetic Compatibility	electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test criteria A output ports conforming to IEC 61000-4-3radiated radio-frequency electromagnetic field immunity test criteria B alarm port conforming to IEC 61000-4-3, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5surge immunity test 2 kV criteria A output ports line to earth conforming to IEC 61000-4-5
Marking	EAC, UL, CSA, CE
Safety Reliability Data	B10d = 1731395, MTTFd = 1875.9 years
Connections Terminals	ring lugs 11.7 x 4.5 mm outputscrew terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end inputscrew terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end outputforked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Certificate Agency	EAC, CSA, UL, CE
Carbon Footprint Of The Distribution Phase A4	0.0140632474, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0006112315, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	2 616 kg CO2 eq., 2616.0366198089
Local Publishable Date	2026-01-12
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1505006EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Auxiliary Connection Terminal	screw-type connector, 0.5...1.5 mm² 20 AWG...16 AWG)slotted Philips
Device Short Name	SSP1
Load Current	0.15-25 A
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Protection Device Type	type 1 - 25 A miniature circuit breaker (MCB) Btype 2 - 20 A miniature circuit breaker (MCB) B
Range Of Product	Harmony Solid State Relays
Software Version	EIME v5.8.1
Thermal Resistance	0.8 °C/W junction to case
Database Version	2016-11
Dv/Dt	500 V/µs off-state at maximum voltage
Customs Code	8536490080
Functional Unit Description	To switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional Unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	4430.829

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	4 kV AC for input/output, 4 kV AC for input or output to case
Local Signalling	LED, steady, green ON status control input/test button actuatedLED, steady, amber ON status load, LED, flashing, amber control input to energise loadLED, steady, red open-circuit control input, LED, flashing, red load cut-off/short-circuit
Response Time	0.5 cycle (turn-on), 0.5 cycle (turn-off)
Tightening Torque	1.5...1.7 N.m for input2...2.2 N.m for output, 17.7...19.47 lb.in for output, 13.27...15.04 lb.in for input0.5...0.6 N.m for auxillary terminal, 4.4...5.3 lb.in for auxillary terminal
Control Circuit Voltage	4...32 V
Maximum I²T For Fusing	259 A².s for 8.33 ms at 60 Hz, 258 A².s for 10 ms at 50 Hz
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0258049072
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.2097876289
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Cos Phi	0.5-0.5 (with maximum load)
Insulation Resistance	1000 MOhm at 500 V DC
Mounting Support	panel
Phase	1 phase
Product Or Component Type	panel mount relay
Provided Equipment	thermal pad
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	2 617 kg CO2 eq.
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10
Recyclability Potential In %	56

Environment Attributes Main

Ambient Air Temperature For Operation	-40-80 °C, -40-80 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	2617.286886824
Environmental Disclosure	ENVPEP1505006EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1505006EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-125 °C, -40-125 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1505006EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
