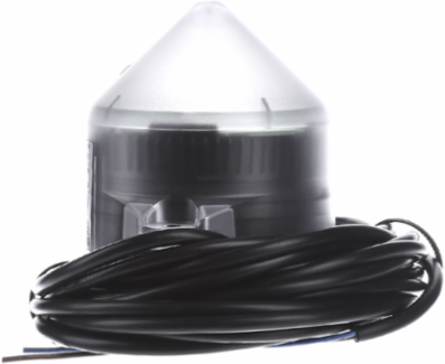

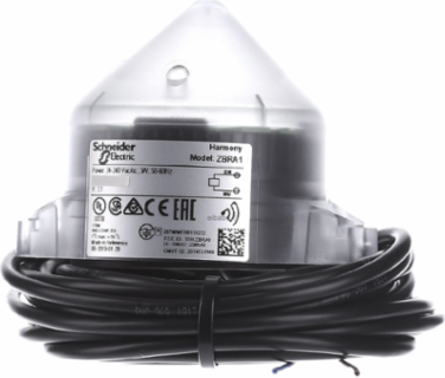

Schneider Electric ZBRA1 Harmony XB5R Wireless Relay Antenna, IP65, 5m Cable, 24-240V AC/DC

  • MPN: ZBRA1
  • PPN: SCH-ZBRA1
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $151.15

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

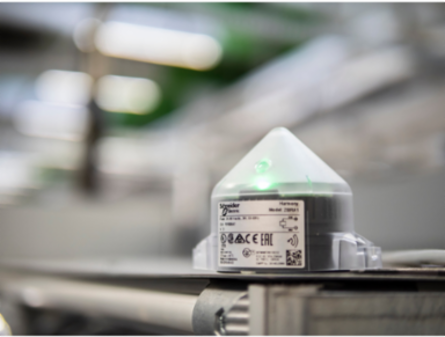

    This relay antenna is part of the range Harmony XB5R plastic and XB4R metal wireless and batteryless pushbuttons. Installed between transmitter and receiver it is used to increase the range and/or get round obstacles. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.

    Features

    • This high-efficiency relay antenna acts as a crucial range extender, bypassing architectural barriers to boost your Harmony XB5R wireless signals up to a maximum line-of-sight distance of 300 meters (984 feet). By maintaining uninterrupted, long-distance communication between your batteryless transmitters and your control cabinet receivers, it eliminates the need for expensive structural modifications or extensive data cabling infrastructure.
    • Rated to stringent IP65 standards, the rugged polycarbonate housing is fully dust-tight and completely protected against low-pressure water jets from any direction. It gives maintenance engineers and plant managers total confidence when installing the hardware directly in high-moisture production areas, outdoor stations, or processing zones subject to routine equipment cleaning.
    • Equipped with a truly universal power supply, this active transceiver functions flawlessly across a wide voltage spectrum from 24V to 240V AC/DC at 50/60 Hz. This broad compatibility eliminates the logistical headache of ordering application-specific power modules, allowing you to tie the unit directly into your existing control circuits or auxiliary power taps without adding dedicated step-down transformers.
    • Operating on the global, interference-resistant 2.4 GHz frequency band utilizing the standardized Zigbee Green Power protocol (IEEE 802.15.4), this omnidirectional antenna integrates seamlessly with your industrial IoT layout. The precise O-QPSK modulation scheme secures robust data packets against signal cross-talk, ensuring that critical industrial commands get delivered instantaneously without cluttering local Wi-Fi or Bluetooth networks.
    • The device comes pre-wired with a flexible, heavy-duty 5-meter (16.4 feet) two-conductor cable to offer maximum flexibility during remote mounting layouts. The integrated enclosure design features dual knockouts accommodating both axial and radial cable routing, which drastically shortens installation times and simplifies point-to-point wiring connections back to your power distribution blocks.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, United States

    Physical Attributes

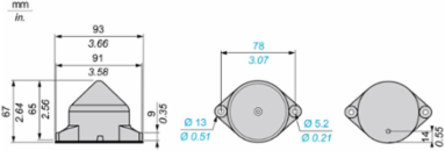

    Cad Overall Height
    67 mm
    Color Of Base Of Enclosure
    black RAL 9011)
    Cad Overall Width93 mm
    Color Of Covertransparent

    Complementary Attributes

    Maximum Power Consumption In W
    4 W AC/DC
    Maximum Sensing Distance300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

    Important Information Attributes

    Persona Type Ids
    BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Insulation Resistance
    > 500 MOhm 500 V DC NF C 20030, > 500 MOhm 500 V DC NF C 20030, > 500 MOhm 500 V DC NF C 20030, > 500 MOhm 500 V DC NF C 20030> 500 MOhm 500 V DC NF C 20030, > 500 MOhm 500 V DC NF C 20030, > 500 MOhm 500 V DC NF C 20030, > 500 MOhm 500 V DC NF C 20030
    Status Led
    1 LED Green power ON, 1 LED Green emission signal
    Vibration Resistance
    +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/-0.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-66 gn (f= 55-150 Hz) conforming to IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]
    0.039601776, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.0066970816, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    kg CO2 eq., 0
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2303007EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1930
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Antenna Gain
    0 dBi
    Control Station Application
    transceiver (emission and reception)
    Electrical Connection
    2 conductors cable 0.34-0.34 mm² - flexible - 5 m conforming to IEC 60947-1
    Emission Power
    3 mW
    Level Or Class
    5M00G7W
    Modulation Technique
    O-QPSK
    Operating Position
    vertical
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    wireless and batteryless range
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Color Of Base Of Enclosure
    black RAL 9011)
    Pep Code
    ENVPEP2303007EN
    Pep Verification Date
    2020-11-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Reference Lifetime In Y
    10
    Energy Model - Installation [A5]
    Electricity Mix; AC; <lt/> 1kV; EU-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; AC; <lt/> 1kV; EU-27
    [Ui] Rated Insulation Voltage
    250 V IEC 60664-1
    Rated Short-duration Power Frequency Withstand Voltage
    4 kV 50 Hz IEC 60947-5-1
    Package Weight(Lbs)
    267.000 g
    Warranty (In Months)
    18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Shock Resistance25 gn 6 ms) 6000 shocks IEC 60068-2-27, 15 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Transmission Frequency2405 MHz transmitter, 2405 MHz receiver
    Certificate AgencyCCC, BT 2006/95/EC, UL, GOST, CSA, CE, C-tick
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1253540853
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 2.2934037333
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Antenna Typeomnidirectional
    Device Short NameZBRA
    Electrical Shock Protection Classclass II conforming to IEC 61140
    Housing Materialpolycarbonate
    Materialpolycarbonate
    Number Of Channels1
    Overvoltage CategoryIII conforming to IEC 60664-1
    Product DestinationWireless Schneider Electric ecosystem devices
    Range Of ProductHarmony XB5R
    Software VersionEIME v5.8.1
    Tightening Torque0.6 N.m
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Color Of Covertransparent
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe ZBRT1 is a wireless switch block which can be mounted with an actuation head. When the head is actuated through the action of an operator the product will generate electricity in order to send a radio signal to a radio reciever for 10 years.
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity Mix; AC; <lt/> 1kV; EU-27
    Recyclability Potential In %2
    [Us] Rated Supply Voltage24...240 V AC/DC 50/60 Hz - 10...10 %
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8529104040

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    2.4650566763
    Environmental Disclosure
    ENVPEP2303007EN
    Ip Degree Of Protection
    IP65 IEC 60529 55 °C 0.1 m
    Packaging Without Single Use Plastic
    Yes
    Pep Code
    ENVPEP2303007EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Type Of Verification For The Pep
    Independent internal review
    Directives1999/5/EC - R&TTE directive, 2004/108/EC - electromagnetic compatibility
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI2303007EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-11-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    wireless and batteryless range
    Range Of ProductHarmony XB5R

    ETIM

    ETIM 8
    EC002024
    ETIM 9EC002024

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
