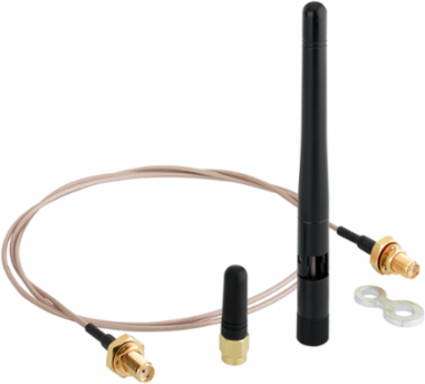

Schneider Electric ZBRA3 Harmony XB5R Wireless Antenna, 0.9m Cable, SMA Female Connector, IP65
- MPN: ZBRA3
- PPN: SCH-ZBRA3
CAD
$126.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This wireless and batteyless transceiver provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Taiwan
Communications & Management Attributes
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
Physical Attributes
- Cad Overall Depth
- 1200 mm
- Cad Overall Width
- 13 mm
Cad Overall Height110 mm
Color Of Base Of Enclosureblack RAL 9011)
Complementary Attributes
- Maximum Sensing Distance
- 10 m transmitters, receivers and relay-antenna
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL, CSA, CE
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Antenna Type
- omnidirectional
- Device Short Name
- ZBRA
- Electrical Shock Protection Class
- class II conforming to IEC 61140
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- wireless and batteryless range
- Returnability
- Yes
- Color Of Base Of Enclosure
- black RAL 9011)
- Package Weight(Lbs)
- 30.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Antenna Gain3 dBi 83-100 Hz
Connector TypeSMA female
Electrical Connectioncable 2.3-2.3 mm² - flexible - 0.9 m
Kit Compositionantenna with cable 0.9 m
Product Destinationfor XB5R and XB4R Ø 22 mm control units
Range Of ProductHarmony XB5R
Sustainable PackagingYes
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8529104040
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP65 IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity90-90 % -40-70 °C, without condensation ETSI EN 300 440-1
General Attributes
- Product Or Component Type
- wireless and batteryless range
Range Of ProductHarmony XB5R
ETIM
- ETIM 8
- EC002024
ETIM 9EC002024
Input Attributes
- Input Impedance
- 50 Ohm
