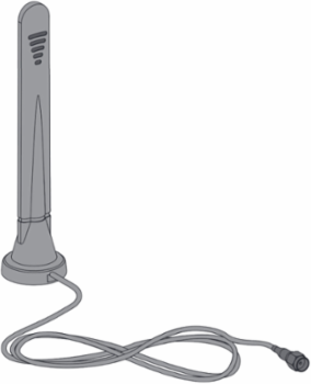

Schneider Electric PASA-ANT1 EcostruXure Panel Server antenna IEEE802.11 / IEEE802.15.4
- MPN: PASA-ANT1
- PPN: SCH-PASA-ANT1
CAD
$150.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
EcostruXure Panel Server antenna IEEE802.11 / IEEE802.15.4
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, India, Senegal, United States |
|---|
Physical Attributes
| Color | Black |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2102 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Antenna Gain | 3 dBi |
| Electrical Connection | cable RP-SMA 3 m |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | EcoStruxure |
| Sustainable Packaging | Yes |

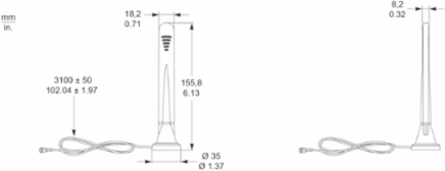

| Length Total | 155.8 mm |
| Halogen-free Status | Halogen free plastic parts and cables product |
| Package Weight(Lbs) | 201 g |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | ESXP1G003EN |
| Local Publishable Date | 2025-12-11 |
|---|---|
| Stocking Flag | N |
| Serviceability | No |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Average Impedance | 50 Ohm |
| Energy Efficiency Optimized | False |
| Product Or Component Type | antenna |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Accessory / Separate Part Category | communication accessory |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8517790000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -35-65 °C, -35-65 °C |
|---|---|
| Take Back | No |
| Halogene Performance | Halogen free plastic parts & cables product |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Halogen Content Performance | Halogen free plastic parts & cables product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Storage | -5-85 °C, -5-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP65 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | antenna |
|---|
ETIM
| ETIM 8 | EC001698 |
|---|
| ETIM 9 | EC001698 |
|---|
