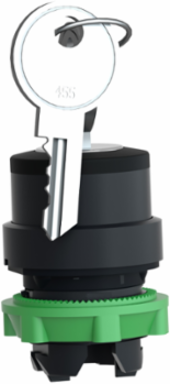

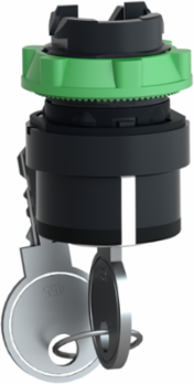

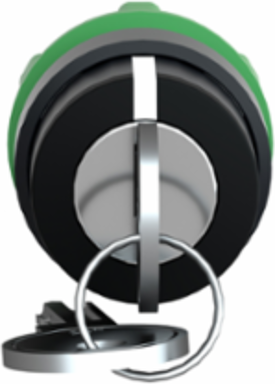

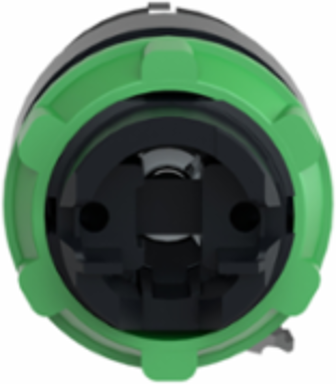

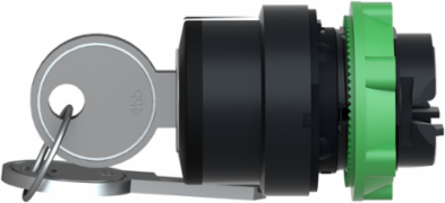

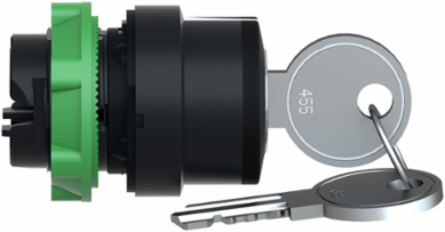

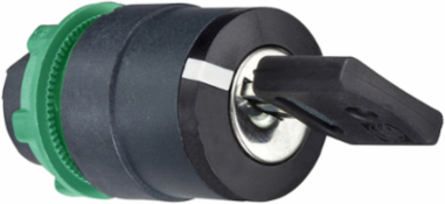

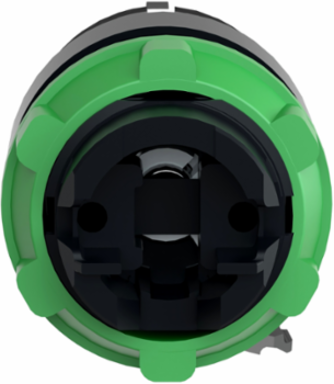

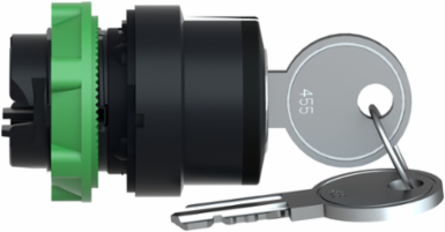

Schneider Electric ZB5AG08 Harmony XB5 Key Switch Selector Head, 22mm, IP66, 3 Positions
- MPN: ZB5AG08
- PPN: SCH-ZB5AG08
CAD
$94.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This head with key (key no.455) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
Features
- The Schneider ZB5AG08 is a 22mm 3-position selector switch head from the Harmony XB5 plastic range. It is designed for high-security applications where only authorized personnel with a physical key should be able to change the operational state of a machine or system.
- This model features 3 positions with a Stay Put (maintained) action. This means the switch will remain in whichever of the three positions it is turned to Left, Center, or Right until it is manually turned again. The key is removable in any position, allowing you to lock the machine into a specific mode (e.g., Manual, Off, or Auto) and remove the key to prevent unauthorized changes.
- The ZB5AG08 is equipped with a standard Ronis 455 key profile. This widely used industrial keying system ensures that maintenance teams can manage multiple switches with a single key type while still maintaining a barrier against general personnel tampering. Two keys are included with every unit.
- As a "head-only" component, the ZB5AG08 is designed to be paired with a ZB5AZ009 mounting collar and ZBE contact blocks. This modularity allows you to customize the electrical logic such as having different contacts close in each of the three positions to fit your specific control circuit requirements.
- Manufactured from dark grey polyamide, the ZB5AG08 is highly resistant to chemical cleaning agents and salt spray. It carries IP66, IP67, and IP69K ratings, meaning it can withstand high-pressure, high-temperature washdowns, making it a staple for Canadian food and beverage processing plants.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Mexico, United States

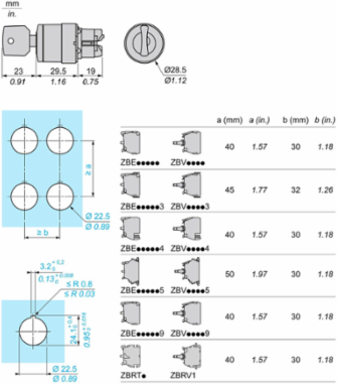

Physical Attributes
- Cad Overall Depth
- 72 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Key Withdrawal Position
- left, left
- Station Name
- XALD 1...5 cut-outs, XALK 2...5 cut-outs
- Certificate Agency
- DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0909146797
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.4558861704
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 74.18
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- head for key selector switch
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Keylock
- key 455
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Type Of Operator 3 Return
- right to centre
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
