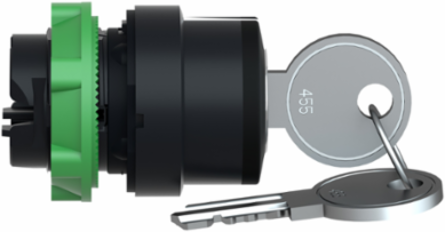

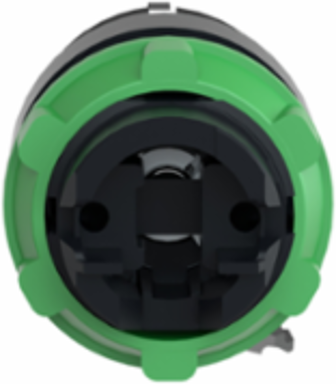

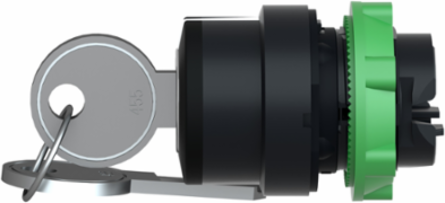

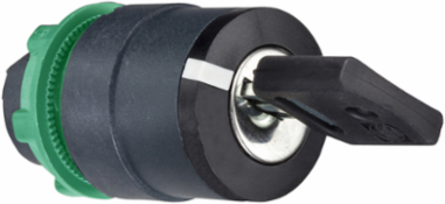

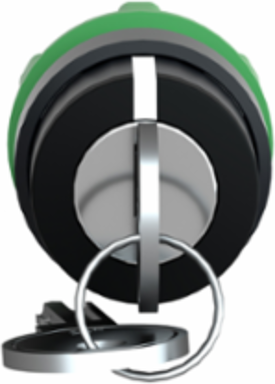

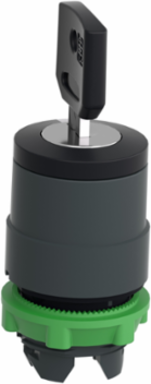

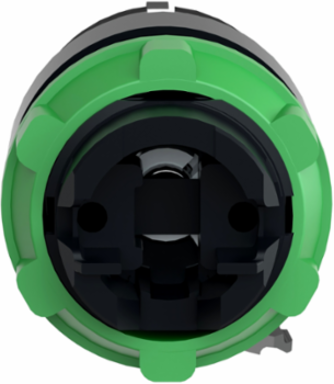

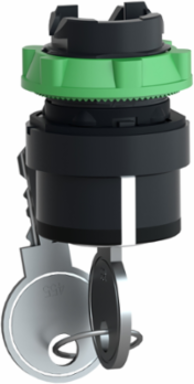

Schneider Electric ZB5AG05 Harmony XB5 Key Switch Selector Head, 22mm, 3 Positions, IP66
- MPN: ZB5AG05
- PPN: SCH-ZB5AG05
CAD
$123.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

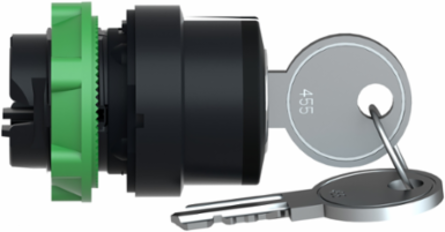

This Harmony XB5, head with key (key no.455) for key selector switch has 3 positions, operates with spring return from right to center mechanism with key withdrawal on left and right position. This head with key provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units to provide a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Equipped with a widely standard Ronis 455 key lock and a 3-position spring-return-to-center mechanism, this selector switch head restricts critical machine controls to authorized personnel only. The automatic center return ensures your equipment instantly defaults to a safe, neutral state the moment the operator releases it, significantly reducing the risk of accidental starts or unattended operation in busy manufacturing environments.
- Engineered for seamless integration with the modular Schneider Electric Harmony XB5 series, this 22mm operator interface mounts perfectly into standard industry panel cutouts. The lightweight yet rugged plastic bezel resists harsh industrial chemicals and eliminates complex retrofitting, allowing maintenance technicians to quickly swap out damaged switch heads onto existing contact blocks without requiring total system downtime.
- Boasting top-tier IP66, IP67, and extreme IP69K ingress protection ratings, this durable key switch is completely sealed against fine dust ingress and high-pressure, high-temperature water jets. This NEMA 4X and NEMA 13 compliant construction makes it an essential failsafe component for strict food and beverage processing facilities, or outdoor electrical enclosures that undergo daily, rigorous washdowns.
- Boasting top-tier IP66, IP67, and extreme IP69K ingress protection ratings, this durable key switch is completely sealed against fine dust ingress and high-pressure, high-temperature water jets. This NEMA 4X and NEMA 13 compliant construction makes it an essential failsafe component for strict food and beverage processing facilities, or outdoor electrical enclosures that undergo daily, rigorous washdowns.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico
Physical Attributes

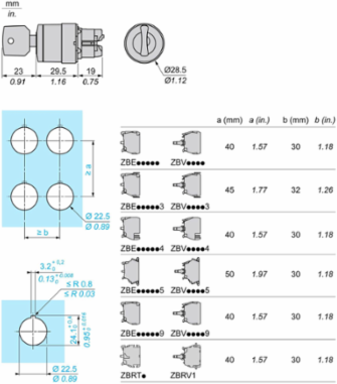

- Cad Overall Depth
- 72 mm
- Cad Overall Width
- 29 mm
Cad Overall Height29 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Key Withdrawal Position
- left and center, left and center
- Certificate Agency
- DNV, CSA, BV, LROS (Lloyds register of shipping), UL Listed
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0678467759
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.34021356
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Mechanical Durability
- 1000000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Overvoltage Category
- class II conforming to IEC 60536
- Product Or Component Type
- head for key selector switch
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Type Of Keylock
- key 455
- Vibration Resistance
- 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
- Type Of Operator 3 Return
- right to centre
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Composition CodeC4 6 single and double front mounting, C5 5 single front mounting, C6 5 single and double front mountingC7 4 single front mounting, C8 4 single and double front mountingC11 3 single front mounting, C3 6 single front mounting, SF1 3 single front mountingSR1 3 single rear mounting
Operator Pos Information3 positions +/- 45°
Carbon Footprint Of The Distribution Phase [A4]0.0065384615, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0077083765, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-03-26
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeZB5
Group Of Productkey switch
Main Groupselector switch
Mounting Diameter22 mm
Operator Profileblack key switch
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Station NameXALD 1...5 cut-outsXALK 2...5 cut-outs
Total Lifecycle Carbon Footprint0.4 kg CO2 eq.
Type Of Operatorright to centre spring return
Type Of Operator 3 Type Of Operatorspring return
Pep CodeENVPEP2308009EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Cap/Operator Or Lens Colourblack
Package Weight(Lbs)66.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.422307174
- Environmental Disclosure
- ENVPEP2308009EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionUL type 4X/13, NEMA 13, NEMA 4X
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308009EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308009EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- head for key selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC000222
ETIM 9EC000222
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
