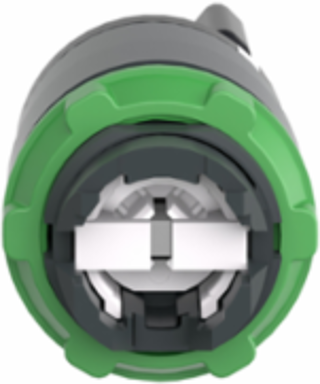

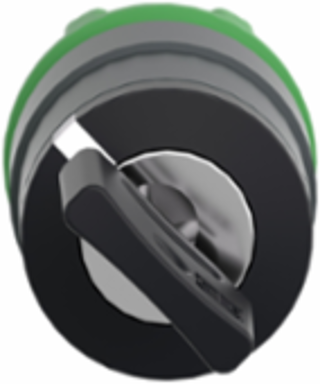

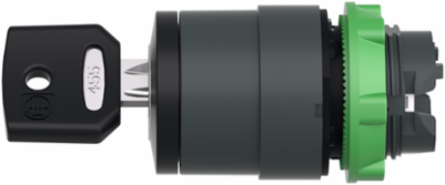

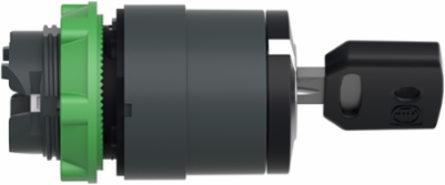

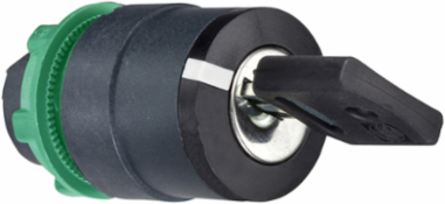

Schneider Electric ZB5AG2D Harmony XB5 Key Switch Selector Head, 22mm, 2 Positions, IP66, Black

MPN: ZB5AG2D
PPN: SCH-ZB5AG2D

$94.98

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This head with key (key no.8D1) provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete key selector switch units. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Harmony XB5
Type Of Operator	stay put
Shape Of Signaling Unit Head	round
Key Withdrawal Position	left
Bezel Material	dark grey plastic
Operator Position Information	2 positions 90°
Type Of Keylock	Dom 8D1

Mounting Diameter	22 mm
Product Or Component Type	head for key selector switch
Head Type	standard
Sale Per Indivisible Quantity	1
Operator Profile	black key switch
Device Short Name	ZB5

Complementary

Electrical Composition Code	C4 6 single and double front mounting \|\| C5 5 single front mounting \|\| C6 5 single and double front mounting \|\| C7 4 single front mounting \|\| C8 4 single and double front mounting \|\| C11 3 single front mounting \|\| C3 6 single front mounting \|\| SF1 3 single front mounting \|\| SR1 3 single rear mounting \|\| C15 1 single front mounting
Cad Overall Height	29 mm
Mechanical Durability	1000000 cycles
Cad Overall Width	29 mm

Net Weight	0.057 kg
Device Presentation	basic element
Station Name	XALD 1...5 cut-outs \|\| XALK 2...5 cut-outs
Cad Overall Depth	72 mm

Environment

Product Certifications	GL \|\| BV \|\| LROS (Lloyds register of shipping) \|\| DNV \|\| UL listed \|\| CSA
Ambient Air Temperature For Operation	-40-70 °C
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 \|\| 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection	IP66 IEC 60529 \|\| IP67 \|\| IP69 \|\| IP69K
Ambient Air Temperature For Storage	-40-70 °C
Nema Degree Of Protection	NEMA 13 \|\| NEMA 4X

Ik Degree Of Protection	IK06 conforming to IEC 50102
Standards	EN/IEC 60947-1 \|\| UL 508 \|\| CSA C22.2 No 14 \|\| JIS C8201-5-1 \|\| EN/IEC 60947-5-1 \|\| EN/IEC 60947-5-4 \|\| JIS C8201-1
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Overvoltage Category	class II IEC 60536
Protective Treatment	TH

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP1710010EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Circularity Profile	ENVEOLI1710010EN

Mercury Free	Yes
Sustainable Offer Status	Green Premium product
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
