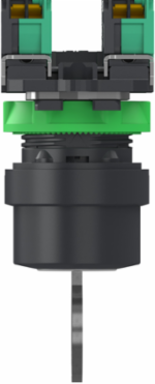

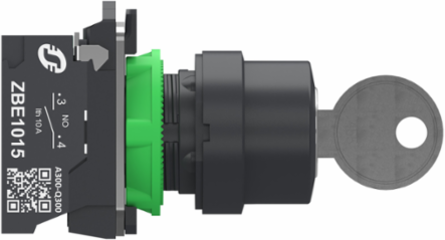

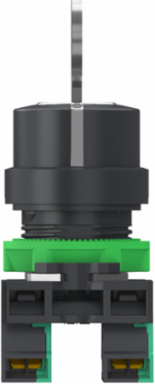

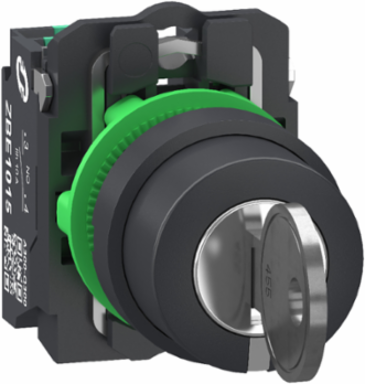

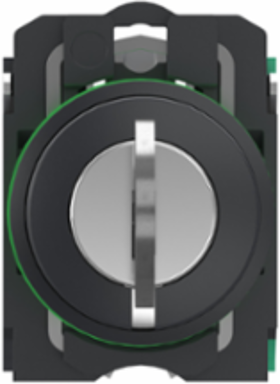

Schneider Electric XB5AG035 Key switch selector, Harmony XB5, plastic, black, 22mm, key 455, 3 positions, stay put, key release 3 pos, 2 NO, push in
- MPN: XB5AG035
- PPN: SCH-XB5AG035
CAD
$58.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony XB5 modular black key selector switch (key no.455) has 3 positions and operates with a stay-put mechanism with key withdrawal on left, center and right positions. This plastic key switch selector provides an ergonomic interface for controlling your machines. It features 2 NO contacts with slow break operation. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with push-in terminal connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. This product is made from plastic, it weighs 86g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States

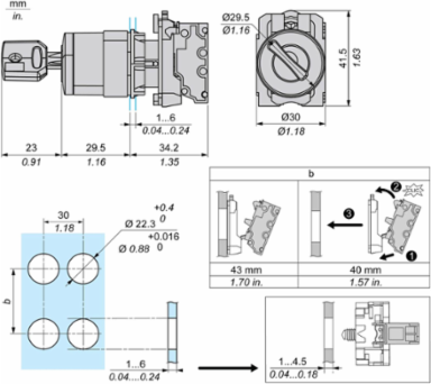

Depth87.2 mm
Physical Attributes
- Cap Operator Or Lens Color
- black
Complementary Attributes
- Ie Rated Operational Current
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
Ui Rated Insulation Voltage300 V 3)IEC 60947-1
Us Rated Supply Voltage230...240 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0

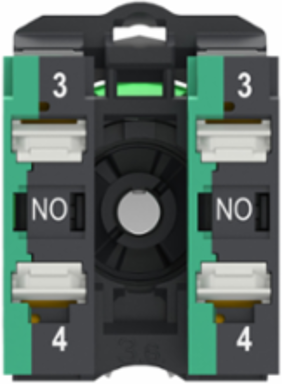

- Terminals Description Iso N 1
- (13-14)NO, (13-14)NO
- Connections Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Carbon Footprint Of The Distribution Phase A4
- 0.0125080769, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0 kg CO2 eq., 0.0147461243
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0.2 kg CO2 eq., 0.15828
- Local Data Status
- Publishable
- Pre Comm Date
- 2024-05-23
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Bezel Material
- dark grey plastic
- Contact Operation
- slow-break
- Contacts Type And Composition
- 2 NO
- Device Short Name
- XB5
- Head Type
- standard
- Mechanical Durability
- 10000000 cycles
- Operator Position Information
- 3 positions +/- 45°
- Positive Opening
- without
- Product Or Component Type
- selector switch
- Range Of Product
- Harmony XB5
- Returnability
- Yes
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Torque Value
- 0.14 N.m NO changing electrical state
- Type Of Keylock
- key 455
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ith Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Pep Code
- ENVPEP2308009EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Height Nominal
- 42 mm
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 2.9674
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 2.9674
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2.9674
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Ie Rated Operational Current6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Carbon Footprint Of The End Of Life Phase C1 To C40.1297908822, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.6508285403
Certificate AgencyEAC, IECEE CB Scheme, CCC, UL, CSA
Local Publishable Date2026-01-12
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Electrical Shock Protection Classclass II conforming to IEC 60536
Key Withdrawal Positionin any position
Mounting Diameter22.5 mm
Operator Profileblack key switch
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity1
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Type Of Operatorstay put
Cap Operator Or Lens Colorblack
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.004 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal30 mm
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]2.3377
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3.3754
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67, IP69, IP69K
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.9661536238
- Environmental Disclosure
- ENVPEP2308009EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308009EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308009EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony XB5
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Overview Attributes
- Device Presentation
- complete product
