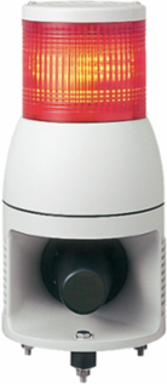

Schneider Electric XVC1M1HK Harmony XVC Tower Light, Plastic, Red, 100 mm, IP54, Siren, 100-240V AC
- MPN: XVC1M1HK
- PPN: SCH-XVC1M1HK
CAD
$776.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Harmony XVC tower light from Schneider Electric is an essential component for enhancing visibility in automated systems. Featuring a robust plastic construction, this red signal light is rated IP54 for protection against dust and splashes, making it suitable for various industrial environments. With a height of 100 mm and the ability to operate on 100-240V AC, it not only signals alerts effectively but also integrates seamlessly into your control setups. The included siren adds an auditory layer to visual notifications, ensuring that important alerts are unmistakably conveyed, even in noisy factory settings. This tower light is designed to help improve operational efficiency and safety in your workplace.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XVC1
- Beacon Or Indicator Bank Unit Type
- 1 illuminated unit
- Supply Circuit Type
- AC
- Product Or Component Type
- complete pre-wired monolithic tower light
- Sound Signalling
- siren
Noise Level0-102 dB continuous or intermittent tone)1 m
Mounting Diameter100 mm
Light SourceLED steady or flashing red
Component NameXVC
[Us] Rated Supply Voltage100...240 V
Complementary
- Height
- 293 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Cable Cross Section
- 0.33-0.33 mm² || 0.83-0.83 mm²
- Material
- polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
- Marking
- CE
- Current Consumption
- 235 mA
Awg GaugeAWG 22 || AWG 18
Flashing Frequency0.7-3 Hz
Product Mountingon base
Cable Length500 mm
Net Weight1.68 kg
Environment
- Product Certifications
- UL
- Ambient Air Temperature For Storage
- -35-70 °C
- Electrical Shock Protection Class
- class I IEC 61140
- Ip Degree Of Protection
- IP54 IEC 60529
Ambient Air Temperature For Operation-20-50 °C
StandardsIEC 60947-5-1 || IEC 60947-1
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904008EN
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904008EN
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
