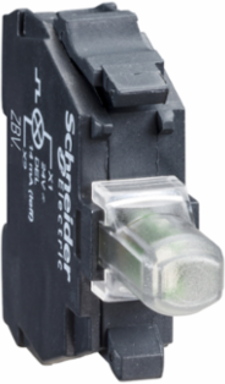

Schneider Electric ZBVG5 Light block for head 22mm, Harmony XB4, orange, integral LED, 110...120V AC
- MPN: ZBVG5
- PPN: SCH-ZBVG5
CAD
$50.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony ZB, orange light block operates with an integral LED. It is supplied with 110V to 120V AC and uses screw clamp terminals. It has a plastic body. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It features high endurance LED lighting for less replacement and process downtimes. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4 || Harmony XB5
- Light Block Supply
- direct
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
- Signalling Type
- steady
- Device Short Name
- ZBV
- Bulb Base
- integral LED
Light Sourceprotected LED
Product Or Component Typelight block
Sale Per Indivisible Quantity5
Light Source Colourorange
[Us] Rated Supply Voltage110...120 V AC 50/60 Hz
Complementary
- Mounting Of Block
- front mounting
- Net Weight
- 0.017 kg
- Device Presentation
- basic element
- Surge Withstand
- 1 kV IEC 61000-4-5
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Electrical Composition CodeM1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Current Consumption14 mA
Service Life100000 h at rated voltage and 25 °C
Tightening Torque0.8-1.2 N.m EN 60947-1
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- CSA || UL listed
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
[Us] Rated Supply Voltage110...120 V
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Ip Degree Of ProtectionIP20 IEC 60529
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Resistance To Fast Transients2 kV IEC 61000-4-4
