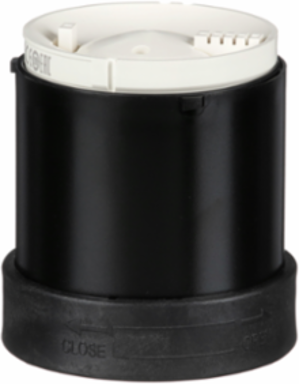

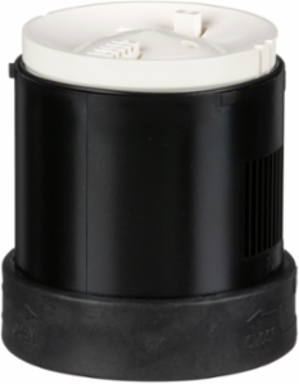

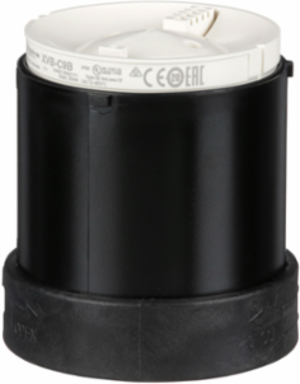

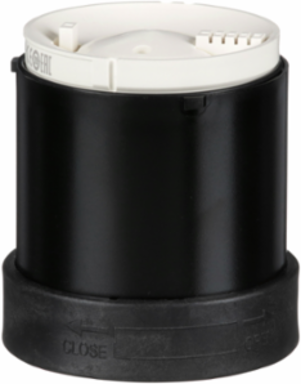

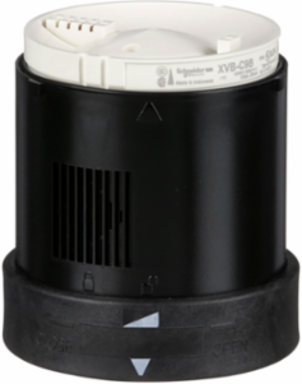

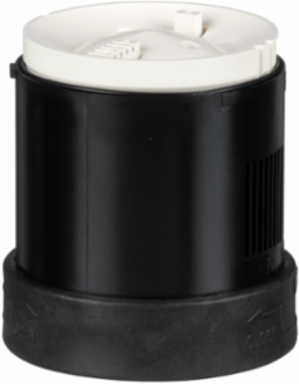

Schneider Electric XVBC9B Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65

  • MPN: XVBC9B
  • PPN: SCH-XVBC9B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $390.89

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

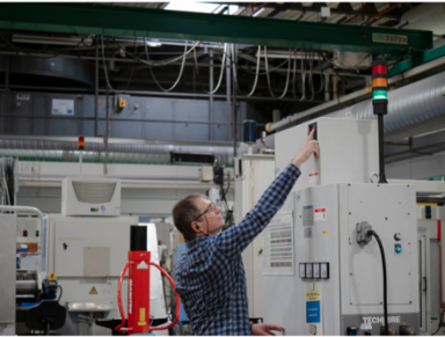

    Harmony XVB 70 mm modular beacons and tower lights are available with steady or flashing lights, and with incandescent or LED illumination. The XVB 70mm tower light range is modular line makes assembly simple which minimizes installation time. There are 5 illuminated units and an audible unit that are simple interchangeable units. The LEDs have a service life of 100,000 hours which reduces the need for maintenance. The wide variety of modules simplifies designing a tower light to meet your requirements. Harmony XVB 70 mm tower lights can be used in automotive, machine tool, material handling, packaging, assembly stations, conveyors and more. It complies with international standards and certifications (CCC, CSA C22-2 No.14, EN/IEC 60947-5-1, EAC, UL 508 standards and NEMA 4X).

    Features

    • Engineerd with an adaptable, wide-ranging 12V to 48V AC/DC operating voltage, this acoustic module drops seamlessly into almost any standard low-voltage automation system. You can standardise your inventory on a single part number without having to worry about mismatched secondary control voltages or sourcing separate AC and DC components.
    • Featuring four accessible microswitches built into the base, this smart signaling unit allows you to modulate the volume from 70 dB up to a piercing 90 dB at 1 meter. This granular control gives your team the power to bypass heavy machinery ambient noise while preventing ear strain in tight control rooms.
    • Take complete control over machine state diagnostics by configuring the onboard dip switches for either a sharp 2.8 kHz continuous tone or a pulsing 1 Hz/5 Hz intermittent beep. Assigning distinct acoustic profiles to different machine states prevents operator alert fatigue and slashes response times on the shop floor.
    • Built with robust polycarbonate and a TC protective treatment, this module carries an IP66 ingress rating on the base unit and NEMA Type 4X certification when panel-mounted. It guarantees long-term, corrosion-resistant performance and dust-tight seals, standing up effortlessly to high-pressure washdowns and oily industrial environments.
    • Designed as a native 70mm acoustic element for the legacy Schneider Electric Harmony XVB Universal series, this module stacks effortlessly with up to five illuminated units via simple screw clamp terminals. Note that while it handles all your legacy repairs perfectly, it is not interoperable with the newer Harmony XVB7 range, ensuring you maintain clean configuration boundaries.
    • This commercial-grade signaling device arrives fully compliant with international industrial frameworks, holding UL 508, CSA C22-2 No 14, CE, and CCC markings. Integrating these certified elements ensures your custom control panels sail through local electrical inspections and meet comprehensive workplace safety mandates.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginFrance, Indonesia, Singapore, United States

    Physical Attributes

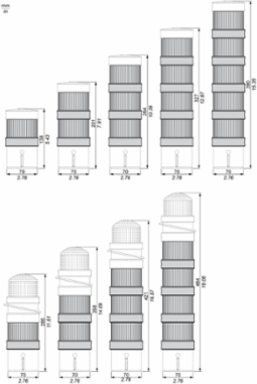

    Cad Overall Depth70 mm
    Cad Overall Width70 mm
    Cad Overall Height63 mm

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Current Consumption< 15 mA, < 15 mA
    Carbon Footprint Of The Distribution Phase [A4]0.0593638269, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.049655963
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 5.5528199536
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Beacon Or Indicator Bank Unit Typeaudible unit
    Electrical Shock Protection Classclass I on support tube IEC 61140class II on base unit IEC 61140
    Important MessageXVB is being substituted by XVB7 as complete range; XVB and XVB7 modules are not interoperable with one another.
    Noise Level70-90 dB 1 m
    Product AvailabilityStock - Normally stocked in distribution facility
    Protective TreatmentTC
    ReturnabilityYes
    Software Versionv5.9.4
    Total Lifecycle Carbon Footprint8 kg CO2 eq.
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionThe main purpose of the Harmony XVB product range is to provide optical or audible signalling, in particular in order to indicate the different states or sequences of a machine or installation from a distance and through 360° for 10 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; ID
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Recyclability Potential In %9
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-1
    Connections - Terminalsscrew clamp terminals, <= 1 x 1.5 mm² with cable end
    Package Weight(Lbs)164.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Certificate AgencyCCC, EAC, CSA C22-2 No 14, UL 508
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3441748597, 0.3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.8047301574
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylecustomer assembly, up to 5 units
    Component NameXVBC
    Fundamental Frequency2.8 kHz
    Mounting Diameter70 mm
    Nominal Voltage Limit0.85...1.1 Un IEC 60947-5-1
    Product Or Component Typeindicator bank
    Range Of ProductHarmony XVB Universal
    Signalling Typecontinuous or intermittent buzzer
    Sustainable PackagingYes
    Pep CodeENVPEP0709007EN
    Pep Verification Date2023-12-08
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    [Ui] Rated Insulation Voltage250 V IEC 60947-1
    [Us] Rated Supply Voltage12...48 V AC/DC
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8531809041

    Environment Attributes Main

    Ambient Air Temperature For Operation-25-50 °C, -25-50 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint7.8107447606
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of ProtectionUL type 4X UL indoor)
    Packaging Without Single Use PlasticYes
    Pep CodeENVPEP0709007EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP0709007EN
    Ip Degree Of ProtectionIP65 on fixing base XVBZ0. IEC 60529IP66 on base unit IEC 60529
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2023-12-08
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Typeindicator bank
    Range Of ProductHarmony XVB Universal

    ETIM

    ETIM 8EC001261
    ETIM 9EC001261

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
    Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65
    Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65
    Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65
    Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65
    Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65
    Harmony XVB Audible Buzzer Unit, 70mm, 12-48V AC/DC, 70-90 dB, IP65
