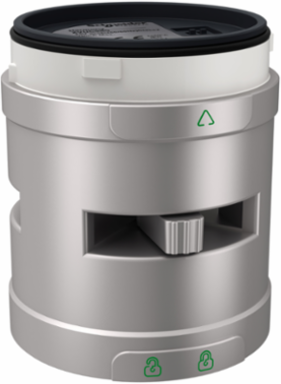

Schneider Electric XVUC9SQ Modular Tower Light 60mm Audible Buzzer 24V AC/DC IP54
- MPN: XVUC9SQ
- PPN: SCH-XVUC9SQ
CAD
$199.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This indicating bank buzzer is an accessory designed as an audible and signalling unit . It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Chile, France, Indonesia, United States
Physical Attributes
- Housing Color
- silver
Complementary Attributes
- Maximum Power Dissipation In W
- 1.7 W
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Material
- PBT (polybutylene terephthalate) V-0 UL 94, ABS (acrylonitrile butadiene-styrene) V-0 UL 94
- Carbon Footprint Of The Distribution Phase [A4]
- 0.02157598197037991, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.17065357372826787, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 17 kg CO2 eq., 17.255921803652964
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308032EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Acoustic Level
- 85 dB 1 m
- Beacon Or Indicator Bank Unit Type
- buzzer unit
- Current Consumption
- <= 70 mA<= 70 mA

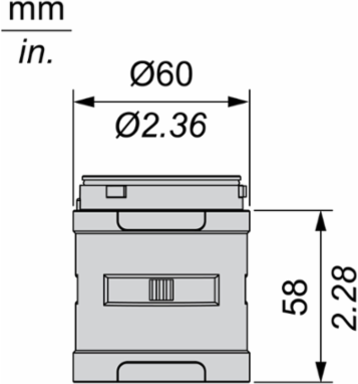

- Mounting Diameter
- 60 mm
- Product Or Component Type
- modular tower light
- Returnability
- Yes
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Housing Color
- silver
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- This Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 37.23
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Length Total
- 58 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, CE, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1437926593689633
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.0845138441725692
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Assembly Stylecustomer assembly
Component NameXVU
Localisation On Devicetop
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductHarmony XVU
Signalling Typecontinuous or intermittent buzzer
Sound Frequency2635 Hz
Total Lifecycle Carbon Footprint19 kg CO2 eq.
Pep CodeENVPEP2308032EN
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %16

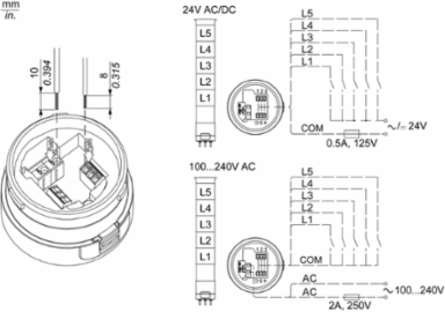

[Us] Rated Supply Voltage24 V AC/DC
Package Weight(Lbs)165.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 18.676457862893145
- Environmental Disclosure
- ENVPEP2308032EN
- Ip Degree Of Protection
- IP54
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308032EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular tower light
Range Of ProductHarmony XVU
ETIM
- ETIM 8
- EC001261
ETIM 9EC001261
