Schneider Electric XVUC27 Harmony XVU Modular Tower Light, 60mm, LED, IP65, 24V AC/DC, Steady
- MPN: XVUC27
- PPN: SCH-XVUC27
CAD
$144.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

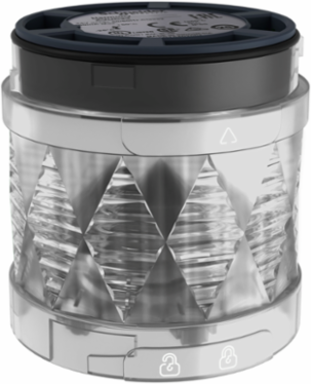

This white illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Singapore, United States
Complementary Attributes
- Maximum Power Dissipation In W
- 2.5 W
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Assembly Style
- customer assembly, up to 5 units, up to 4 units with buzzer
- Material
- PC (polycarbonate) V-2 UL 94, PC (polycarbonate) V-0 UL 94
- Carbon Footprint Of The Distribution Phase [A4]
- 0.00836886573396554, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0661929013249039, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 12 kg CO2 eq., 12.180650684931505
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308032EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Beacon Or Indicator Bank Unit Type
- LED unit
- Current Consumption
- <= 50 mA<= 50 mA

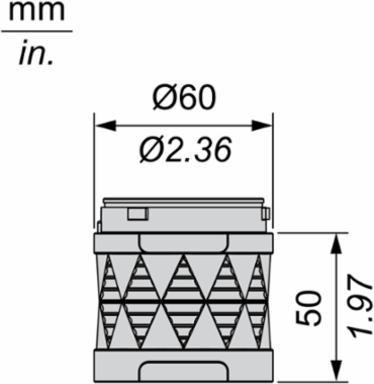

- Mounting Diameter
- 60 mm
- Product Or Component Type
- modular tower light
- Returnability
- Yes
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Pep Code
- ENVPEP2308032EN
- Pep Verification Date
- 2025-02-23
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; ID
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 16
- [Us] Rated Supply Voltage
- 24 V AC/DC
- Package Weight(Lbs)
- 145 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Device Applicationpackaging machine, automotive, machine tools
Certificate AgencyUL, CSA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.05577412242190091
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.4206599153154208
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Component NameXVU
Light SourceLED, white
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony XVU
Signalling Typesteady
Sustainable PackagingYes
Vibration Resistance2 gn
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis Harmony XVU modular range of tower lights are 360° pilot lights and commonly used signaling product for a wide range of applications. These tower lights are visual and audible signaling units that comes with a combination of innovative features high& 10performance and simplicity.It has power consumption of 0.96 W with use rate of 73% for a period of 10 years and adhering to international UL standards and IP 65 degree of protection.
Functional-unit UnitUnit
Energy Consumption On Product Lifetime, In Kwh26.28
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Length Total50 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C, -25-50 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 12.731646489727696
- Environmental Disclosure
- ENVPEP2308032EN
- Ip Degree Of Protection
- IP65
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308032EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308032EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-02-23
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- modular tower light
Range Of ProductHarmony XVU
ETIM
- ETIM 8
- EC000232
ETIM 9EC000232
