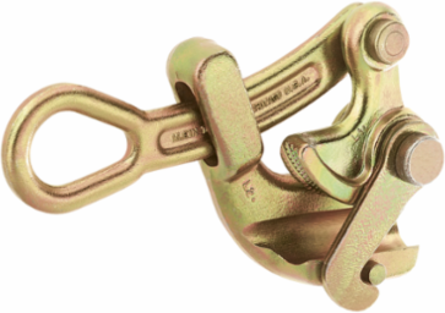

Klein Tools 162520-7/8 Haven's Grip for Wire Rope 0.38-0.88 Inch, Max Safe Load 8000 lb

MPN: 162520-7/8
UPC: 092644472220
PPN: KLT-162520-7/8
UNSPSC: 46182308

$373.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

Designed for use when light, compact grip is desired and where conductor damage is not a factor
Works on 0.38 to 0.88-Inch (9.65 to 22.35 mm) wire rope cable diameter range with max safe load of 8000 lb (3629 kg)
Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
Swing latch helps hold cable in the jaw
Made in USA

Documentation & Downloads

Specifications

Key Specifications

Material	Steel
Cable Diameter	0.38" to 0.88" (9.65 to 22.35 mm)
Jaw Type	Curved
Hot Latch	No
Spring	No
Teeth Type	Aggressive
Jaw Length (cm)	0.6
Jaw Length (Inch)	0.25
Weight (lb)	3.4
Width	4.5000 in
Weight	3.3840 lbs

Cable Type	EHS, Guy Strand, Messenger
Application	Wire Pulling
Type	Haven's Grip
Locking Handle	No
Swing Latch	Yes
Weight (kg)	1.5
Maximum Safe Load (lb)	8000
Maximum Safe Load (kg)	3628.7
Height	1.6920 in
Depth	6.7500 in
