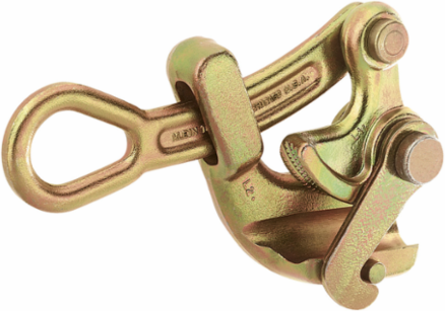

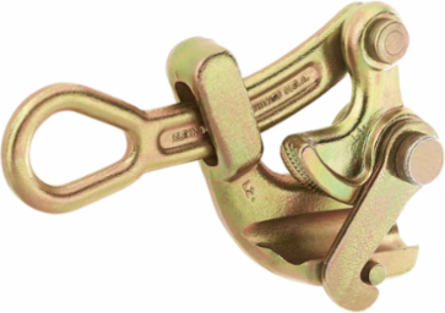

Klein Tools 162520-1 Haven's Grip for Wire Rope 0.50-1.00 Inch, Max Load 8000 lb
- MPN: 162520-1
- UPC: 092644472237
- PPN: KLT-162520-1
- UNSPSC: 46182308
CAD
$413.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Designed for use when light, compact grip is desired and where conductor damage is not a factor
- Works on 0.50 to 1.00-Inch (12.70 to 25.40 mm) wire rope cable diameters with max safe load of 8000 lb (3629 kg)
- Manufactured from drop-forged, heat-treated steel for excellent durability
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Application
- Wire Pulling
- Cable Diameter
- 0.5" to 1" (12.7 to 25.4 mm)
- Type
- Haven's Grip
- Hot Latch
- No
- Spring
- No
- Teeth Type
- Aggressive
- Jaw Length (cm)
- 0.6
- Jaw Length (Inch)
- 0.25
- Weight (lb)
- 3.4
- Width
- 4.0500 in
- Weight
- 3.3660 lbs
MaterialSteel
Jaw TypeCurved
Cable TypeEHS, Guy Strand, Messenger
Locking HandleNo
Swing LatchYes
Weight (kg)1.5
Maximum Safe Load (lb)8000
Maximum Safe Load (kg)3628.7
Height1.9170 in
Depth6.8670 in
