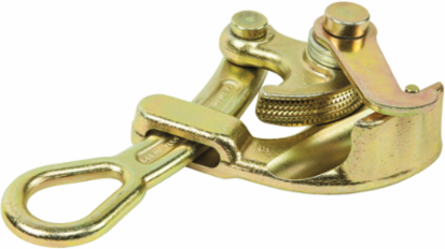

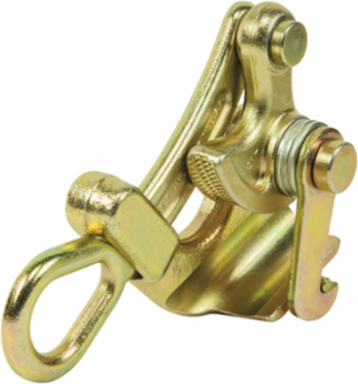

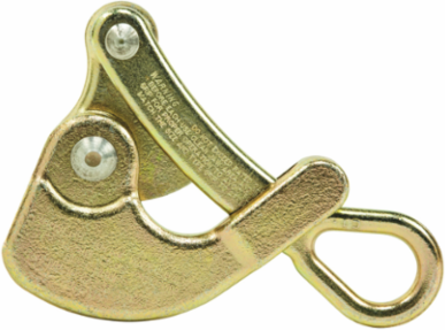

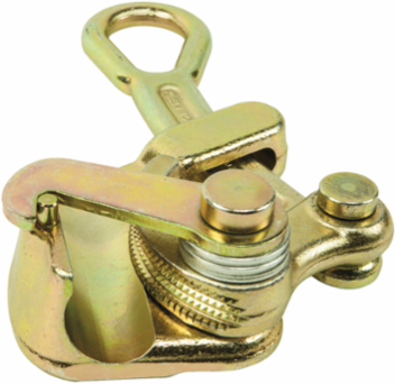

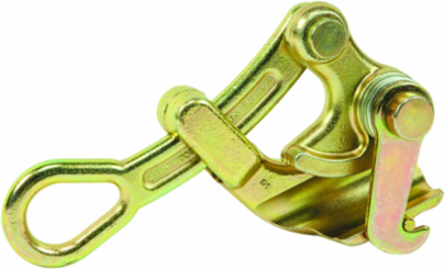

Klein Tools 162520-114 Haven's Grip Wire Pulling Tool, 1-1/4 Inch, 2000 lb Maximum Load
- MPN: 162520-114
- UPC: 092644471988
- PPN: KLT-162520-114
- UNSPSC: 46182308
CAD
$734.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Klein Tools 1625 Series Wire Rope Haven's® Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. Available with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features
- Ideal for light, compact grip work where conductor damage is not a factor
- Works with 0.75-Inch to 1.25-Inch (19.05 to 31.8 mm) cable diameter range with 2000-Pound (907 kg) maximum safe load
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.4 mm) cable area
- Swing latch helps hold cable in the jaw
- Made in USA
- Made from extremely durable forged and heat treated steel
- Every grip is inspected by hand and actuated to insure proper function
Documentation & Downloads
Specifications
Key Specifications
| Application | Wire Pulling |
|---|---|
| Jaw Type | Curved |
| Cable Type | EHS, Guy Strand, Messenger |
| Hot Latch | No |
| Spring | No |
| Teeth Type | Aggressive |
| Overall Width (cm) | 10.3 |
| Weight (kg) | 1.7 |
| Overall Height (Inch) | 2.2 |
| Jaw Length (Inch) | 0.25 |
| Overall Length (Inch) | 6.86 |
| Overall Length (cm) | 17.4 |
| Width | 4.0500 in |
| Weight | 3.3600 lbs |
| Type | Haven's Grip |
|---|---|
| Cable Diameter | 0.75" to 1.25" (1.90 to 3.17 cm) |
| Material | Steel |
| Locking Handle | No |
| Swing Latch | Yes |
| Overall Width (Inch) | 4.05 |
| Overall Height (cm) | 5.6 |
| Jaw Length (cm) | 0.6 |
| Maximum Safe Load (lb) | 2000 |
| Maximum Safe Load (kg) | 907.2 |
| Weight (lb) | 3.7 |
| Height | 2.2000 in |
| Depth | 6.8670 in |
