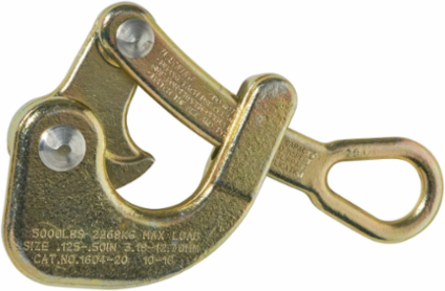

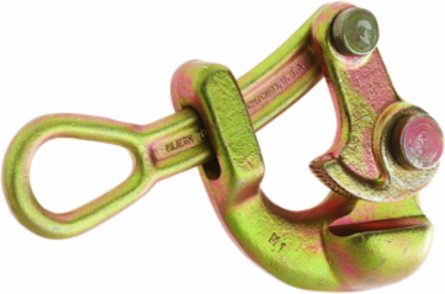

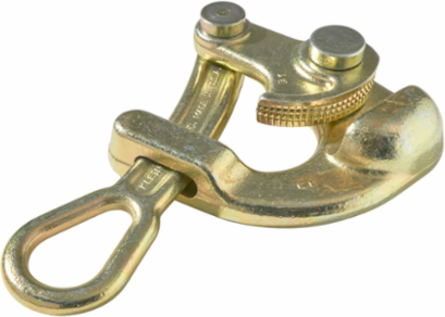

Klein Tools 1604-20 Haven's® Cable Grip 0.5-Inch Capacity, Max Load 5000 lb, 0.125-0.5 Inch Cable
- MPN: 1604-20
- UPC: 092644472039
- PPN: KLT-1604-20
- UNSPSC: 46182308
CAD
$226.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Features

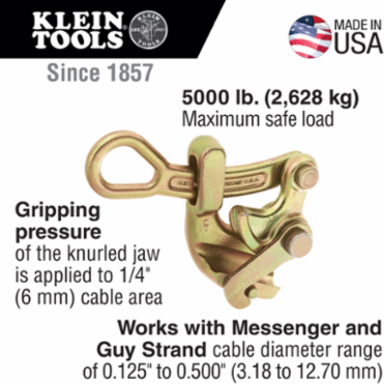

- Designed for use when light, compact grip is desired and where conductor damage is not a factor
- Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)
- Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
- Maximum safe load of 5000-Pound (2268 kg)
- Made in USA
- Individually hand inspected and actuated for proper function
- Rigorously tested and pulled to rated load to ensure the highest quality and reliability
Documentation & Downloads
Specifications
Key Specifications
- Jaw Type
- Curved
- Type
- Haven's Grip
- Cable Diameter
- 0.125" to 0.5" (3.18 to 12.7 mm)
- Hot Latch
- No
- Spring
- No
- Teeth Type
- Aggressive
- Overall Width (cm)
- 4.4
- Weight (kg)
- 1
- Overall Height (Inch)
- 3.75
- Jaw Length (Inch)
- 0.25
- Overall Length (Inch)
- 8.75
- Overall Length (cm)
- 22.2
- Width
- 4.3920 in
- Weight
- 2.2140 lbs
ApplicationWire Pulling
Cable TypeEHS, Guy Strand, Messenger
MaterialSteel
Locking HandleNo
Swing LatchNo
Overall Width (Inch)1.75
Overall Height (cm)9.5
Jaw Length (cm)0.6
Maximum Safe Load (lb)5000
Maximum Safe Load (kg)2268
Weight (lb)2.2
Height1.6920 in
Depth7.6500 in
