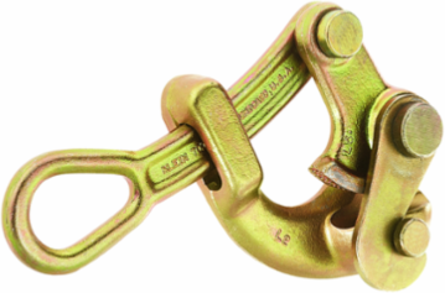

Klein Tools 1604-20L Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity

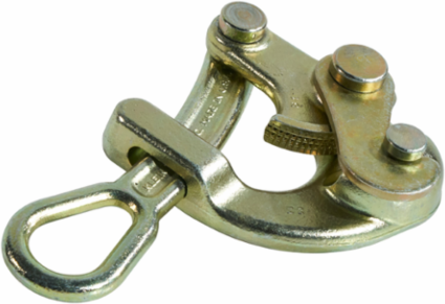

Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity

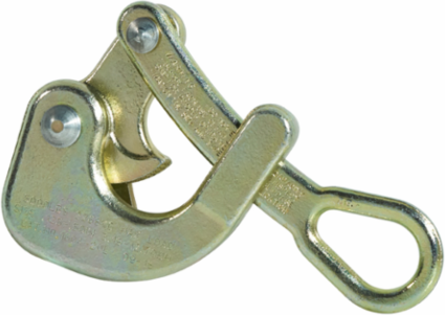

Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity

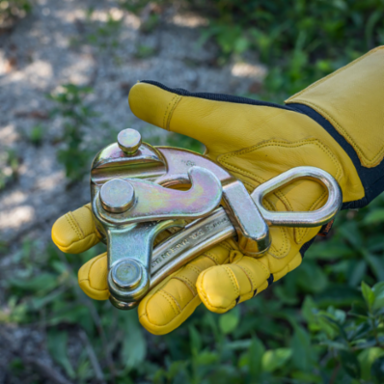

Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity
Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity
Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity
Haven's Grip with Swing Latch, 0.125-0.500 Inch Cable Diameter, 5000 lb Load Capacity
  • MPN: 1604-20L
  • UPC: 092644472046
  • PPN: KLT-1604-20L
  • UNSPSC: 46182308

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$295.51/ EA

Description

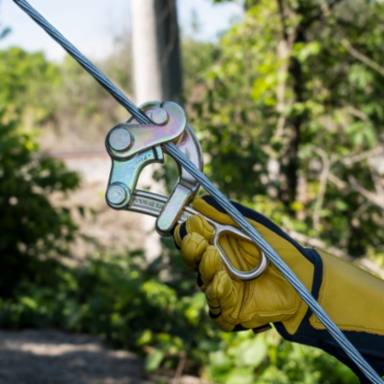

Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

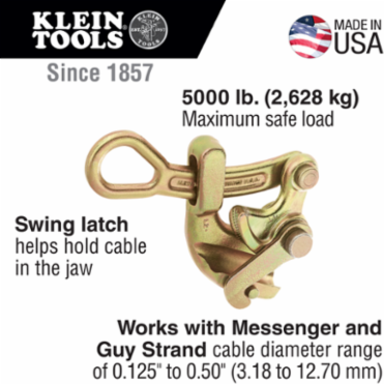

  • Designed for use when a light, compact grip is desired and where conductor damage is not a factor
  • Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)
  • Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
  • Swing latch helps hold cable in the jaw; maximum safe load is 5000-Pound (2268 kg)
  • Made in USA

Specifications

Specifications

Type
Haven's Grip
Jaw Type
Curved
Application
Wire Pulling
Hot Latch
No
Spring
No
Teeth Type
Aggressive
Overall Width (cm)
4.4
Weight (kg)
1.2
Overall Height (Inch)
3.88
Jaw Length (Inch)
0.25
Overall Length (Inch)
8.75
Overall Length (cm)
22.2
Width
4.7500 in
Weight
0.1000 lbs
Cable TypeEHS, Guy Strand, Messenger
Cable Diameter0.125" to 0.5" (3.18 to 12.7 mm)
MaterialSteel
Locking HandleNo
Swing LatchYes
Overall Width (Inch)1.75
Overall Height (cm)9.9
Jaw Length (cm)0.6
Maximum Safe Load (lb)5000
Maximum Safe Load (kg)2268
Weight (lb)2.6
Height1.7600 in
Depth6.3000 in
