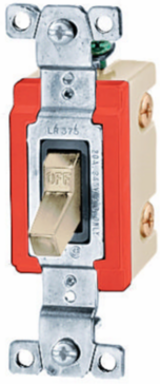

Hubbell Wiring Device-Kellems HBL18201ICN Industrial Toggle Switch, 15A 347V AC, Single Pole, Ivory
- MPN: HBL18201ICN
- UPC: 783585924700
- PPN: HBL-HBL18201ICN
- UNSPSC: 39122211
CAD
$22.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 347V AC, Terminal Screws, Ivory
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 4.06 in x 1.3 in x 1.86 in
- Industry Standard(s)
- UL Listed
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Amperage Rating
- 15 A
- Color
- Ivory
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Standard
- UL Listed
- Voltage Rating
- 347 VAC
- Weight
- 0.2 lb.
- Engineering Drawing 1 Display Text
- HBL18201ICN AutoCAD Drawing
- Dielectric Strength
- Withstands 1500V AC minimum for 1 minute
- Style
- Single Pole
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A16A240
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585924700
- Case Weight
- 10.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height1.86 in
Length4.06 in
Temperature Rise - Max.30°C maximum at rated current
ApplicationBack and Side Wired
Number of PolesSingle Pole
Size4.06 in x 1.3 in x 1.86 in
TypeToggle
Voltage Rating Description347 VAC
Width1.3 in
ConnectivityBack and Side Wired
Number Of PolesSingle Pole
Wire Size#14 AWG to #10 AWG
Description - InvoiceSP TOG, IND GRD, 15A 347V, IV
Harmonization Code8536509040
MSDS FlagNo
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code3359315101
Certifications
- EU RoHS Indicator
- No
