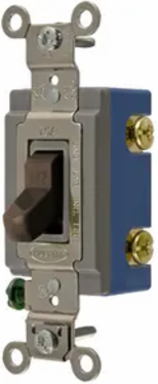

Hubbell Wiring Device-Kellems HBL1202 Extra Heavy Duty Toggle Switch, Double Pole, 15A 120/277V AC, 4.06 Inch
- MPN: HBL1202
- UPC: 783585430164
- PPN: HBL-HBL1202
- UNSPSC: 39122211
CAD
$76.91
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole, 15A 120/277V AC, Back and Side Wired, Brown Toggle
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL1202 AutoCAD Drawing |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 1.87 in |
| Length | 4.06 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Application | Back and Side Wired |
| Number of Poles | Double Pole |
| Size | 4.06 in x 1.31 in x 1.87 in |
| Type | Toggle |
| Voltage Rating Description | 120-277 VAC |
| Width | 1.31 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Style | Double Pole |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 1202 |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.25 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 11.750 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 45.900 in |
| Pallet Weight | 1057.500 lb. |
| NAICS Code | 3359315101 |
| Country of Origin | China |
|---|---|
| Dimensions | 4.06 in x 1.31 in x 1.87 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Amperage Rating | 15 A |
| Color | Brown |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Standard | UL Listed |
| Voltage Rating | 120-277 VAC |
| Weight | 0.2 lb. |
| Connectivity | Back and Side Wired |
| Number Of Poles | Double Pole |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | DP TOG, IND GRD, 15A 120/277V, BR |
| Harmonization Code | 8536509901 |
| MSDS Flag | No |
| Sub Class Code | A16A240 |
| Series | Extra Heavy Duty |
| BOX SIZE | 3.500x9.900x4.700 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585430164 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585430163 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
