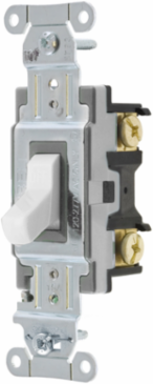

Hubbell Wiring Device-Kellems CS115W Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, White
- MPN: CS115W
- UPC: 783585532004
- PPN: HBL-CS115W
- UNSPSC: 39122211
CAD
$4.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Toggle Switch, Commercial Grade, Single Pole, 15A 120/277V AC, Side Wired, WhiteToggle.
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Number of Poles | Single Pole |
| Temperature Rise | 30 C maximum at rated current |
| Dimensions | 4.18 in x 1.49 in x 1.83 in |
| Connectivity | Side Wired Only |
| Mounting Screw | Thread Cleaning, Captive |
| Bridge Material | Zinc Plated Steel |
| Ground Screw Material | Brass |
| Compliance | UL Listed, RoHS |
| Color | White |
| Voltage | 120-277 V AC |
|---|---|
| Wire Size | #14 AWG to #10 AWG |
| Operating Temperature | -40 C to 75 C continuous |
| Weight | 0.15 lb |
| Material | Nylon, Zinc-Plated Steel |
| Toggle Material | Nylon |
| Contact Material | Silver Alloy |
| Terminal Screws Material | Brass |
| Country of Origin | CN |
