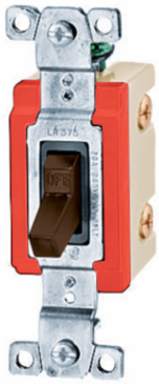

Hubbell Wiring Device-Kellems HBL18201CN Industrial Toggle Switch, 15A 347V AC, Single Pole, Brown
- MPN: HBL18201CN
- UPC: 783585924687
- PPN: HBL-HBL18201CN
- UNSPSC: 39122211
CAD
$22.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Controls, Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 15A 347V AC, Terminal Screws, Brown
Features
- Large brass binding head screws with deep slots
- Abuse resistant nylon toggle
- Strip gauge for accurate wiring
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 4.06 in x 1.3 in x 1.86 in |
| Industry Standard(s) | UL Listed |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only |
| Amperage Rating | 15 A |
| Color | Brown |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Standard | UL Listed |
| Voltage Rating | 347 VAC |
| Weight | 0.2 lb. |
| Engineering Drawing 1 Display Text | HBL18201CN AutoCAD Drawing |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Style | Single Pole |
| Class Code | A16 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A16A240 |
| Series | Extra Heavy Duty |
| BOX SIZE | 3.548x9.858x4.298 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585924687 |
| Case Weight | 10.000 lb. |
| Lowest Level UOM | Each |
| Current / Amperage Rating | 15 A |
|---|---|
| Height | 1.86 in |
| Length | 4.06 in |
| Temperature Rise - Max. | 30°C maximum at rated current |
| Application | Back and Side Wired |
| Number of Poles | Single Pole |
| Size | 4.06 in x 1.3 in x 1.86 in |
| Type | Toggle |
| Voltage Rating Description | 347 VAC |
| Width | 1.3 in |
| Connectivity | Back and Side Wired |
| Number Of Poles | Single Pole |
| Wire Size | #14 AWG to #10 AWG |
| Description - Invoice | SP TOG, IND GRD, 15A 347V, BR |
| Harmonization Code | 8536509040 |
| MSDS Flag | No |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.1 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| NAICS Code | 3359315101 |
